fischer Spring-toggle KDS 8 x 500 | 25 pieces

Product no.: F563862

The fischer KDS tilt plug with VdS and FM approval is a fastening element for trapezoidal sheet metal roofs and provides a secure and objectively tested solution for fixing pipelines in stationary sprinkler systems. Other components such as mounting rails, ventilation ducts, power lines, and lighting systems can also be quickly attached to trapezoidal sheets due to the simple handling. The height-adjustable threaded rod, secured against accidental unscrewing, allows for the practical alignment of the components to be mounted on the trapezoidal sheet. The selection of different lengths helps with the selection of the appropriate KDS tilt plug for the respective application. Features

• Material: Steel, galvanized, passivated
• Seal material: Polyolefin elastomer TPE-O
• Galvanizing: galvanized, min. 5 µm according to DIN EN ISO 4042

Applications

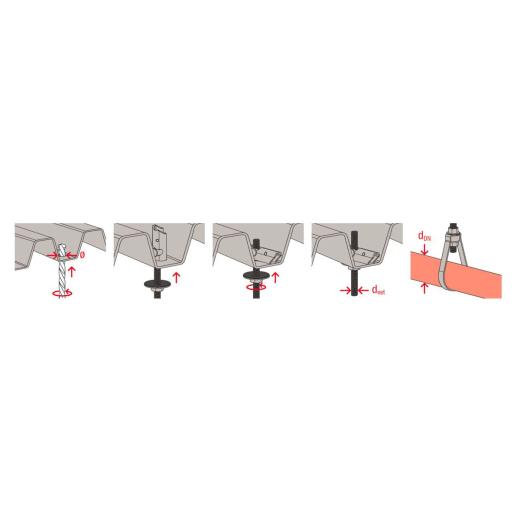

• The completely pre-assembled KDS tilt plug is used as a fastening element on trapezoidal sheet metal roofs
• Suitable e.g. for the fastening of pipelines, mounting rails, ventilation ducts, power lines, and lighting systems
• Fixing sprinkler pipes to trapezoidal sheet metal: from ¾ to 1 ½" inches according to FM, max DN 50 (2") according to VdS
• The permissible tensile load per fixing point for sprinkler pipes on trapezoidal sheets is 0.8 kN, for other fixings 1.0 kN

Approvals

• G 422021

Technical Data

Thread (A)	M 8
Thread length (lg)	500 mm
Max. static load according to VdS/FM	0.8 kN
Max. static load for other applications in trapezoidal sheets	1 kN
Max. recommended static load without considering the trapezoidal sheet	8.0 kN

Price:

224,90 EUR

19 % VAT incl. excl. Shipping costs

9,00 EUR per piece
