Products description
Properties
- Extreme load-bearing performance in concrete and solid brick
- Up to 35 mm fixture size
- Wall plug with special slot to hold caps securely
- Optimally aligned components
- Works through expansion in concrete and solid brick
- Expansion wall plug with shaft and slot for large caps
- Brass screw and SW 10 drive
- The wall plug shaft with flange protects the ceramic object from damage during installation and at the same time serves as a slot for the cap
- Supplied caps ensure a visually appealing installation

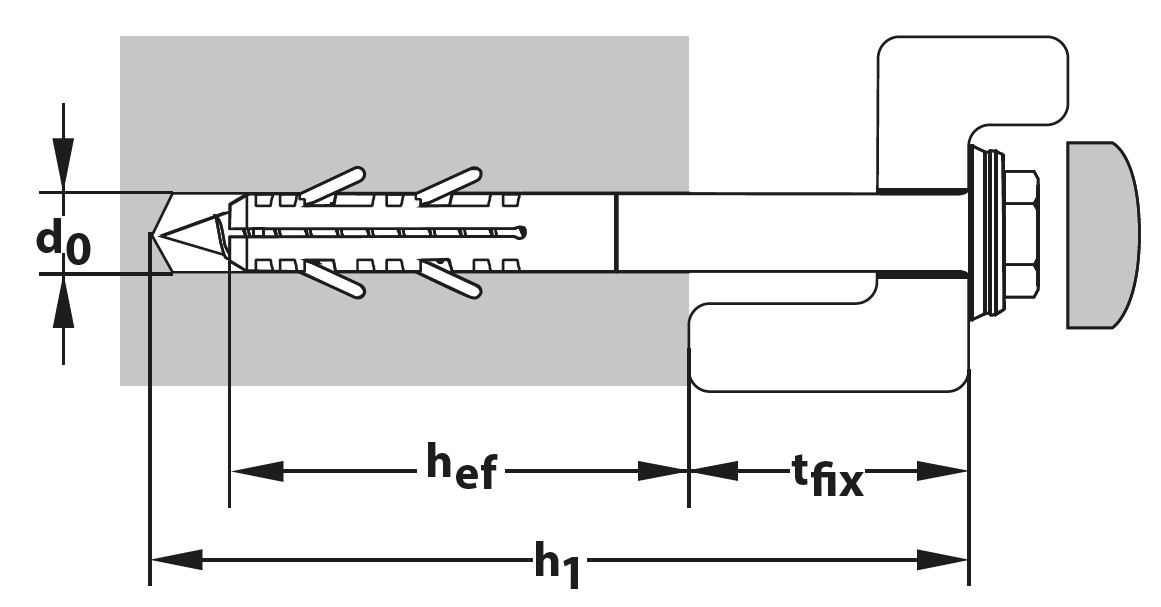

Technical data:
| Dowel diameter | 8 | [mm] | |
| Dowel length | 80 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 8 | [mm] |
| Min. drill hole depth | h1 | 90 | [mm] |
| Min. bolt penetration | hef | 40 | [mm] |
This Product was added to our catalogue on 22/06/2023.
