Products description
Properties
- Various wall plug shaft lengths for bridging non-load bearing layers
Description and field of application
- 14-series special expansion wall plug optimally aligned to Safe Fix Eye
- Available in 3 different lengths
Processing and assembly
- The Safe Fix Eye may be screwed into the Safe Fix only once
- The marking grooves on the Safe Fix Eye scaffold screw indicate the minimum screw-in depth

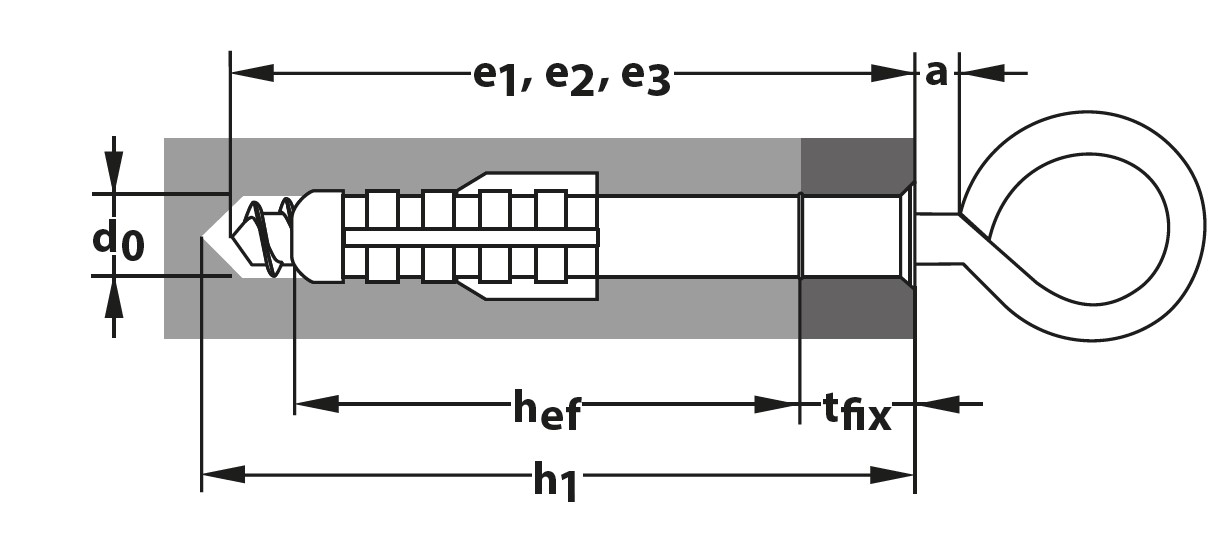

Technical data:
| Dowel diameter | 14 | [mm] | |
| Dowel length | 100 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 14 | [mm] |
| Min. drill hole depth | h1 | 110 | [mm] |
| Min. bolt penetration | hef | 70 | [mm] |
This Product was added to our catalogue on 23/06/2023.
Categories
Welcome back!
Last viewed:
20,90 EUR
0,21 EUR per piece
19 % VAT incl. excl. Shipping costs
