Products description

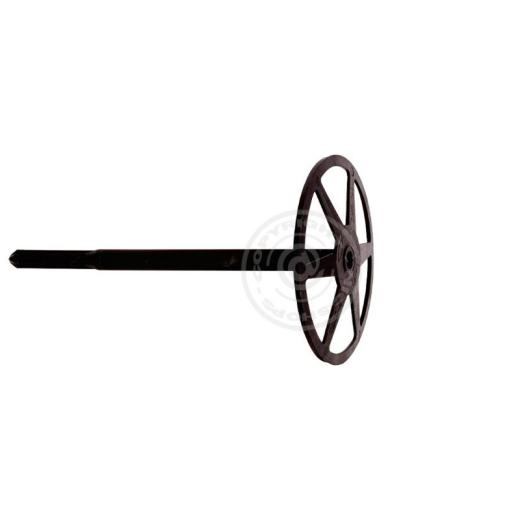

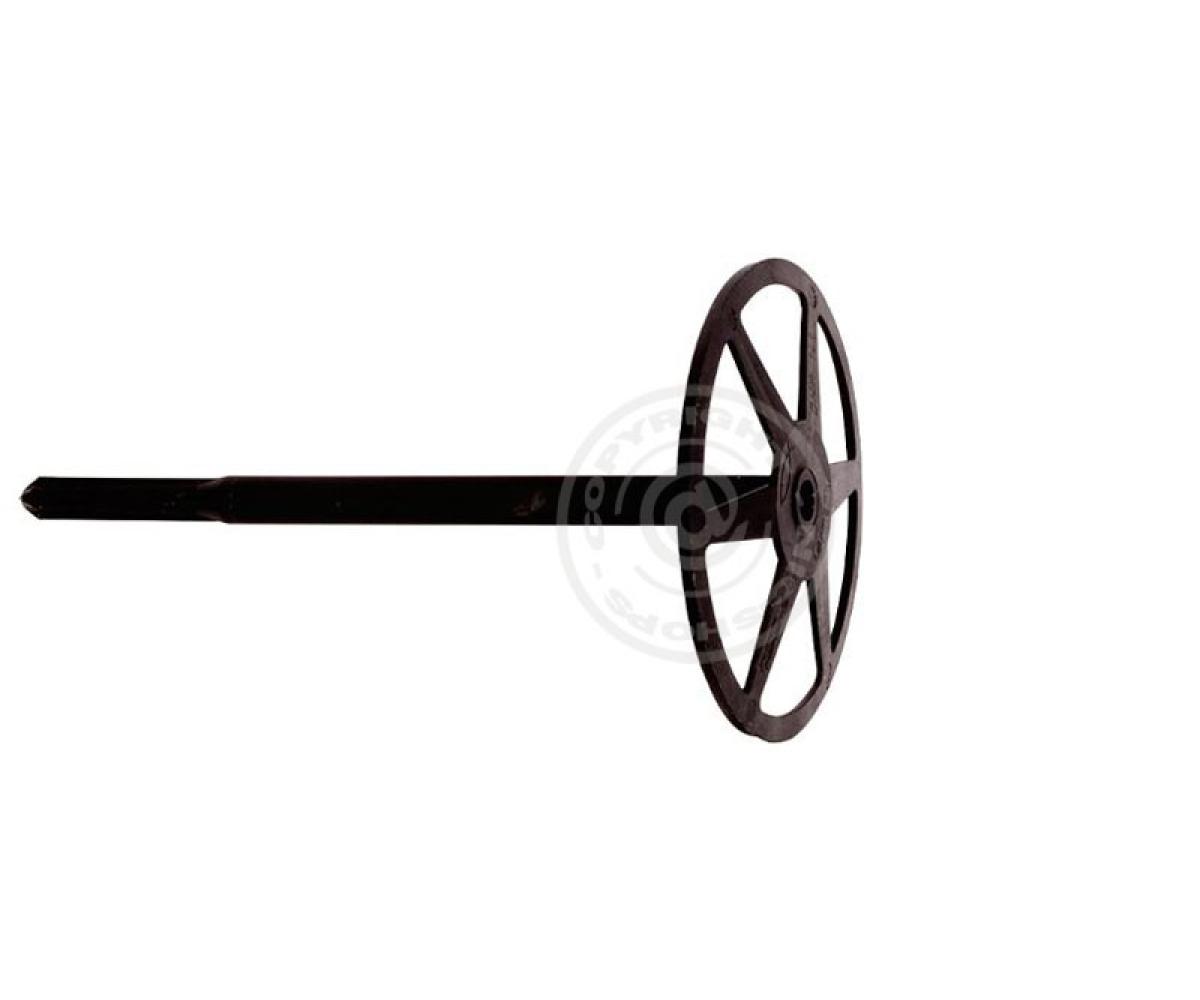

fischer Insulation support DHK 80
Applications

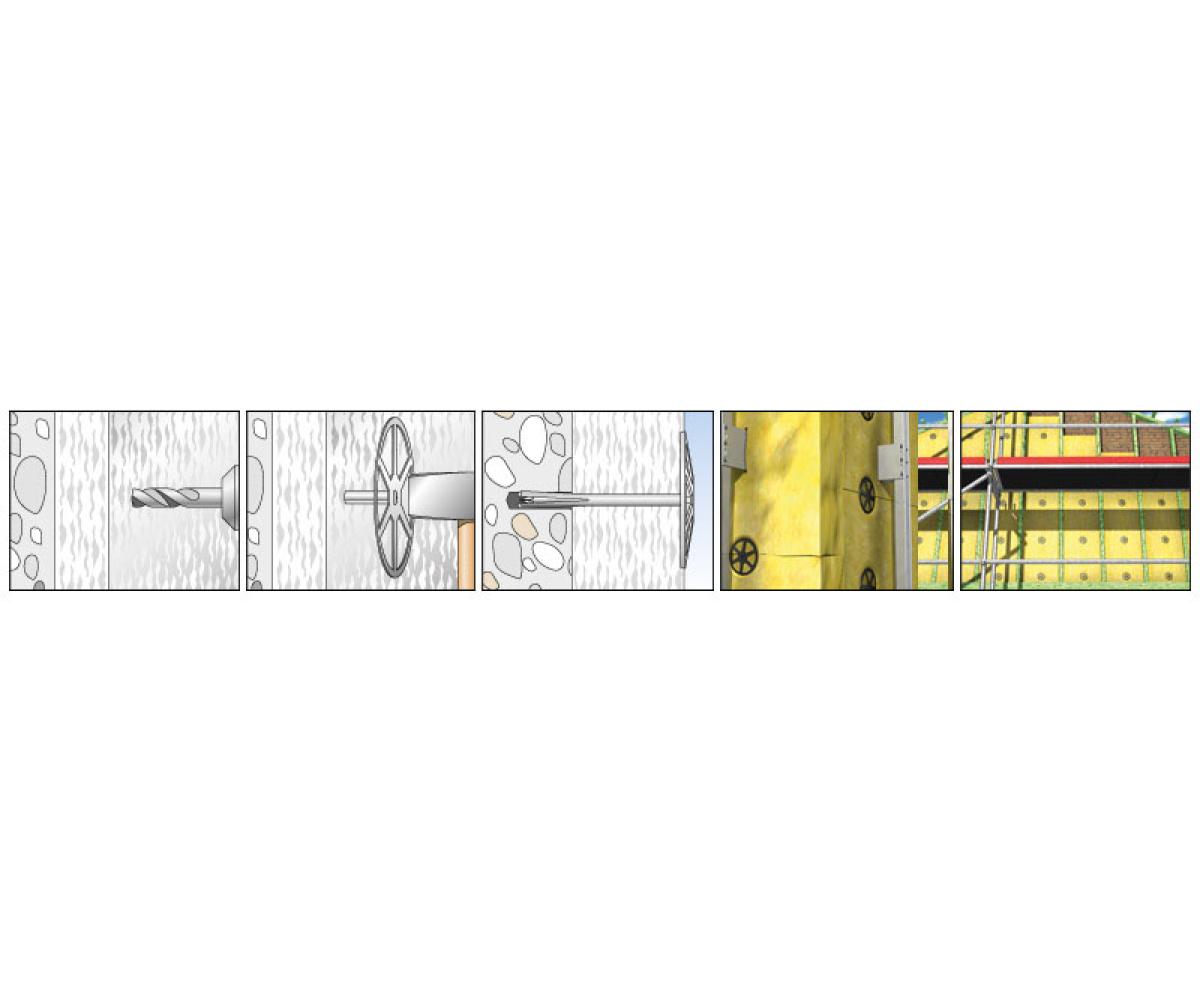

To fix soft and pressure-resistant insulating materials in rear-ventilated façades, such as:
- Mineral / glass wool, PU panels, Light building boards made of wood wool, Cork boards / coir matting, Polystyrene, Foam glass tiles
Building materials
- Concrete, Hollow blocks made from lightweight concrete, Vertically perforated brick, Perforated sand-lime brick, Solid sand-lime brick, Natural stone with dense structure, Aerated concrete, Solid brick made from lightweight concrete, Solid brick
Technical data
DHK, plate-ø 90 mm
| Drill hole diameter | d0 | 8 | [mm] |
| Min. drill hole depth | h1 | 30 | [mm] |
| Effect. anchorage depth | hef | 20 | [mm] |
| Anchor length | l | 105 | [mm] |
| Max. fixture thickness | tfix | 80 | [mm] |
