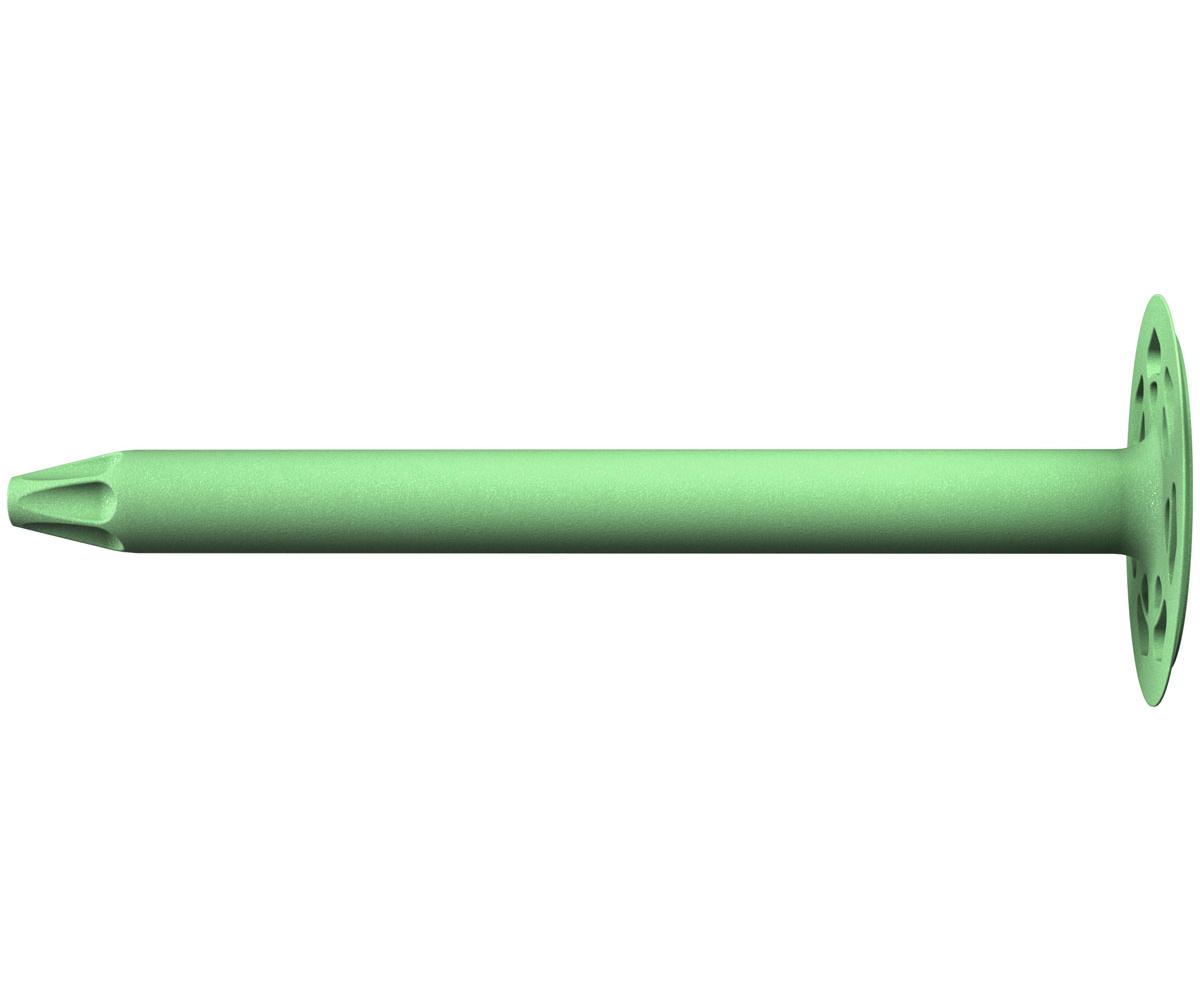

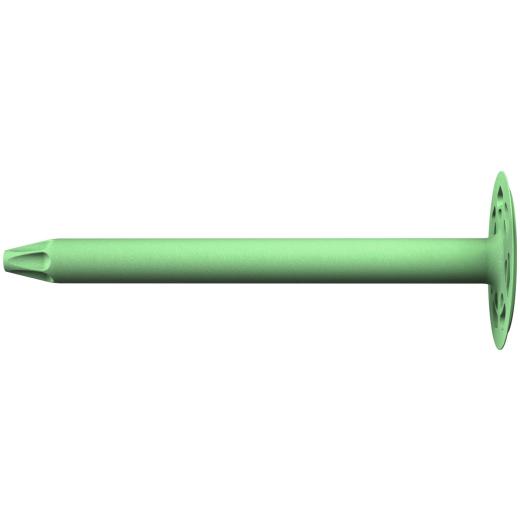

fischer TermoFix H 150 | 200 pieces

The fischer TermoFix H disc elements allow flexible installation of all common insulation boards on wood and panel building materials using standard screws. The ability to combine different shaft lengths with various screw lengths ensures secure fixing of all insulation thicknesses.

Advantages

• For the TermoFix H 10 disc element, polystyrene closure plugs are included.
• For the TermoFix H 50, 90, and 150 disc elements, the disc is sealed with an injection-moulded cap.
• The closure creates an air column above the screw head, reducing heat transmission losses.
• Very high cost-efficiency due to the availability of different shaft lengths. This allows screw lengths to be reduced if necessary.
• Compatible with DT 90, DT 110, and DT 140 insulation discs.

Applications

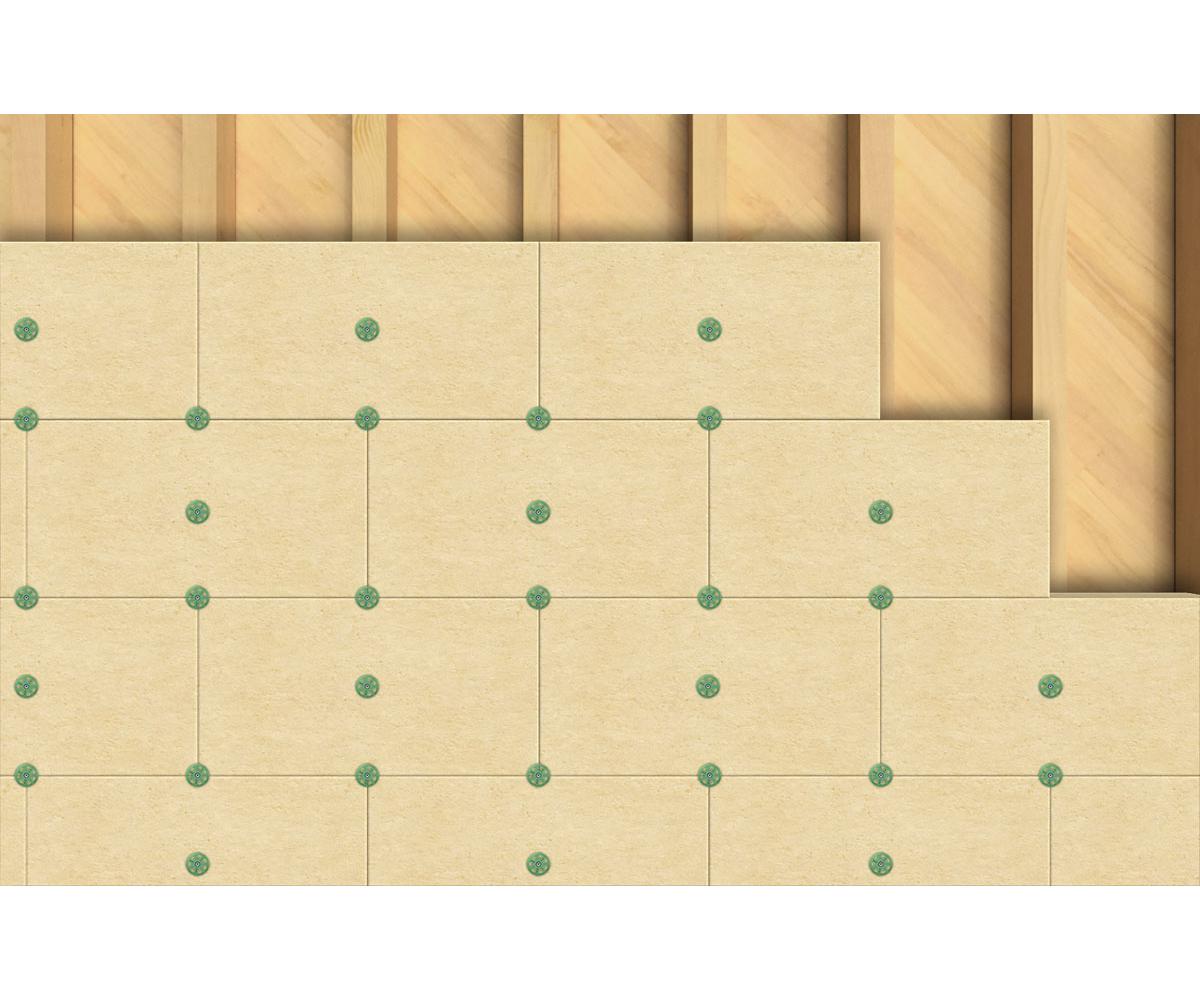

• Fixing ETICS insulation boards with standard screws

Building materials

• Panel building materials
• Solid wood

Product properties:
Colour: green
Shaft length: 169 [mm]
Disc closure: Injection-moulded cap [dN·m]
Disc Ø: 60 [mm]
