Products description

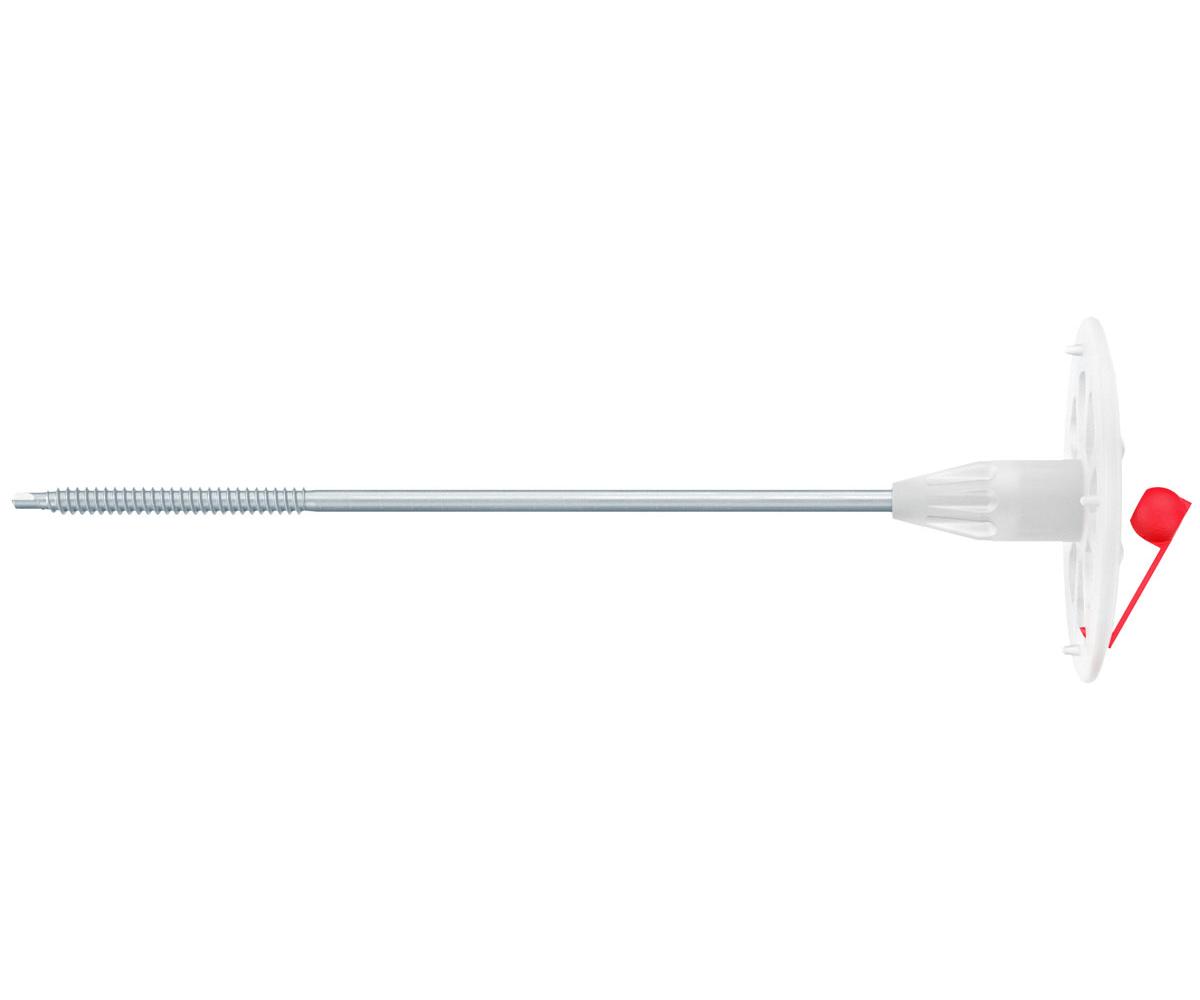

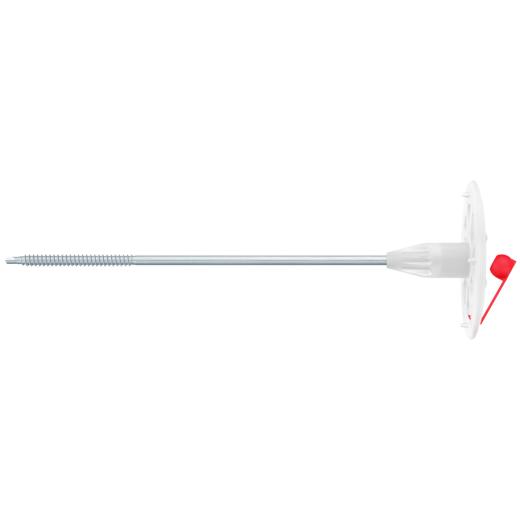

The fischer Termofix B is a corrosion-protected screw anchor for fastening pressure-resistant insulation boards in sheet metal up to 1.5 mm thick. The insulation anchor consists of a holding plate made of polypropylene and a pre-mounted drilling screw. The screw is protected against corrosion with a Delta-Seal coating, providing long-term security. The Termofix B is installed with a cordless screwdriver in through-hole mounting without pre-drilling. The pre-mounted screw saves time. The screw head is sealed against heat loss with the closure ball. The flexible head compensates for thermally induced tensions and prevents damage.
Advantages
- The pre-mounted screw shortens processing time.
- High corrosion protection of the screw due to the Delta-Seal coating. This means security for years to come.
- The closure ball creates an air column above the screw head. This reduces thermal transmission losses.
- The flexible head compensates for thermally induced tensions and prevents damage.
- Can be combined with insulation plates DT 90, DT 110, DT 140 for very soft insulation materials.
Applications

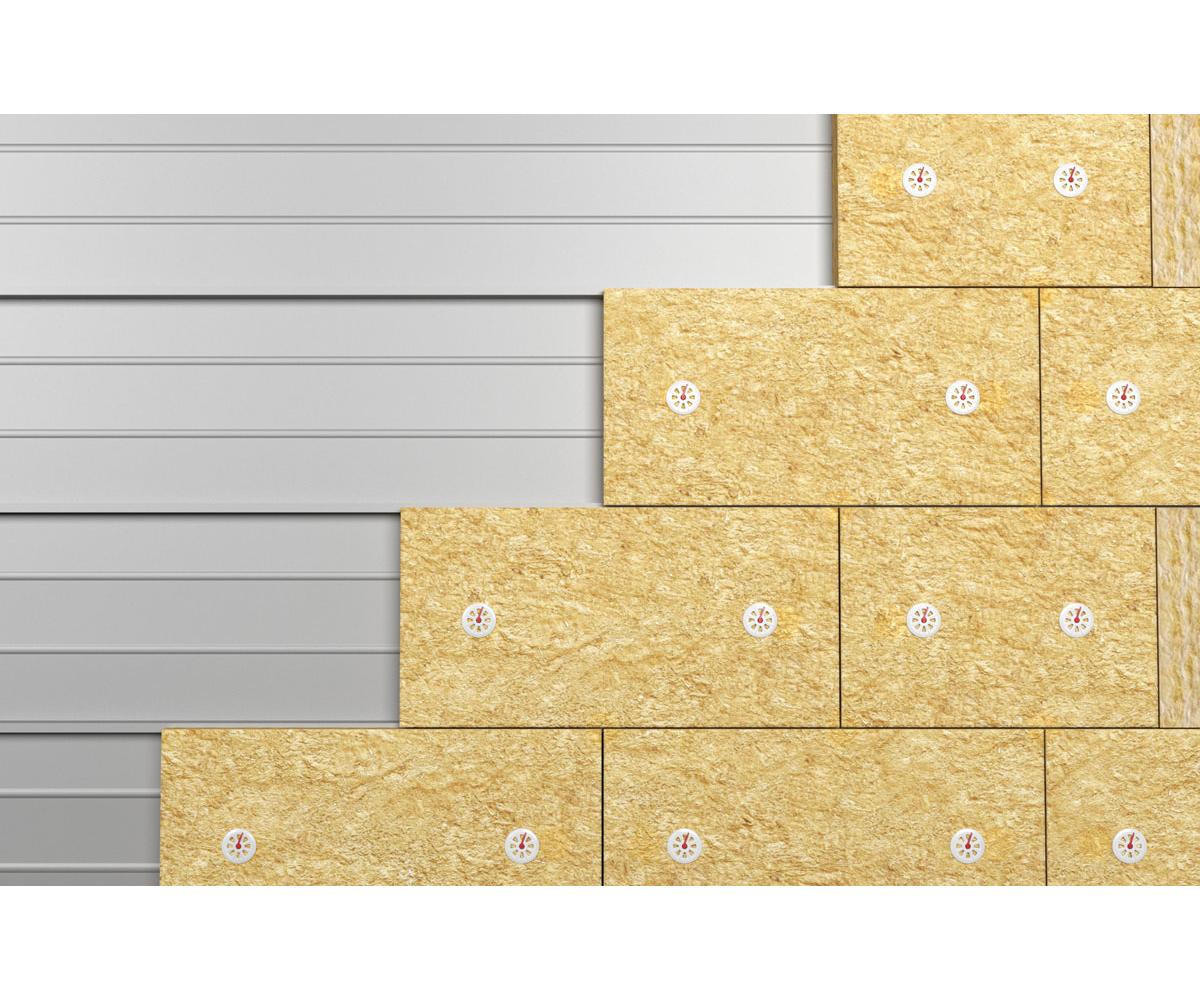

- Fastening of ETICS insulation boards on sheet metal substrates
- Surface-flush installation in ETICS insulation materials, e.g., polystyrene
Building materials
- Sheet metal / corrugated sheet metal up to 1.5 mm

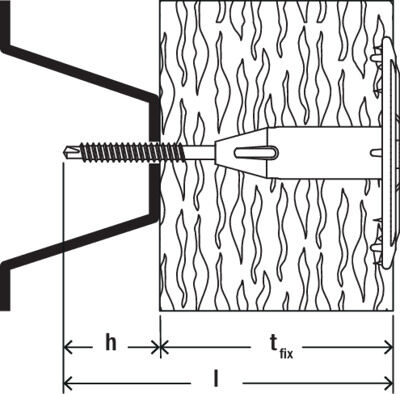

Product characteristics:
| Drive | PH2 |
| Drilling end diameter | 8 [mm] |
| Anchor length | 110 [mm] |
| Mounting type | Screw anchor |
| Max. usable length | 90 [mm] |
| Max. thickness of attachment | 90 [mm] |
| Min. anchorage depth | 20 [mm] |
| Screw length | 100 [mm] |
| Plate diameter | 60 [mm] |
This Product was added to our catalogue on 08/01/2024.
