Products description

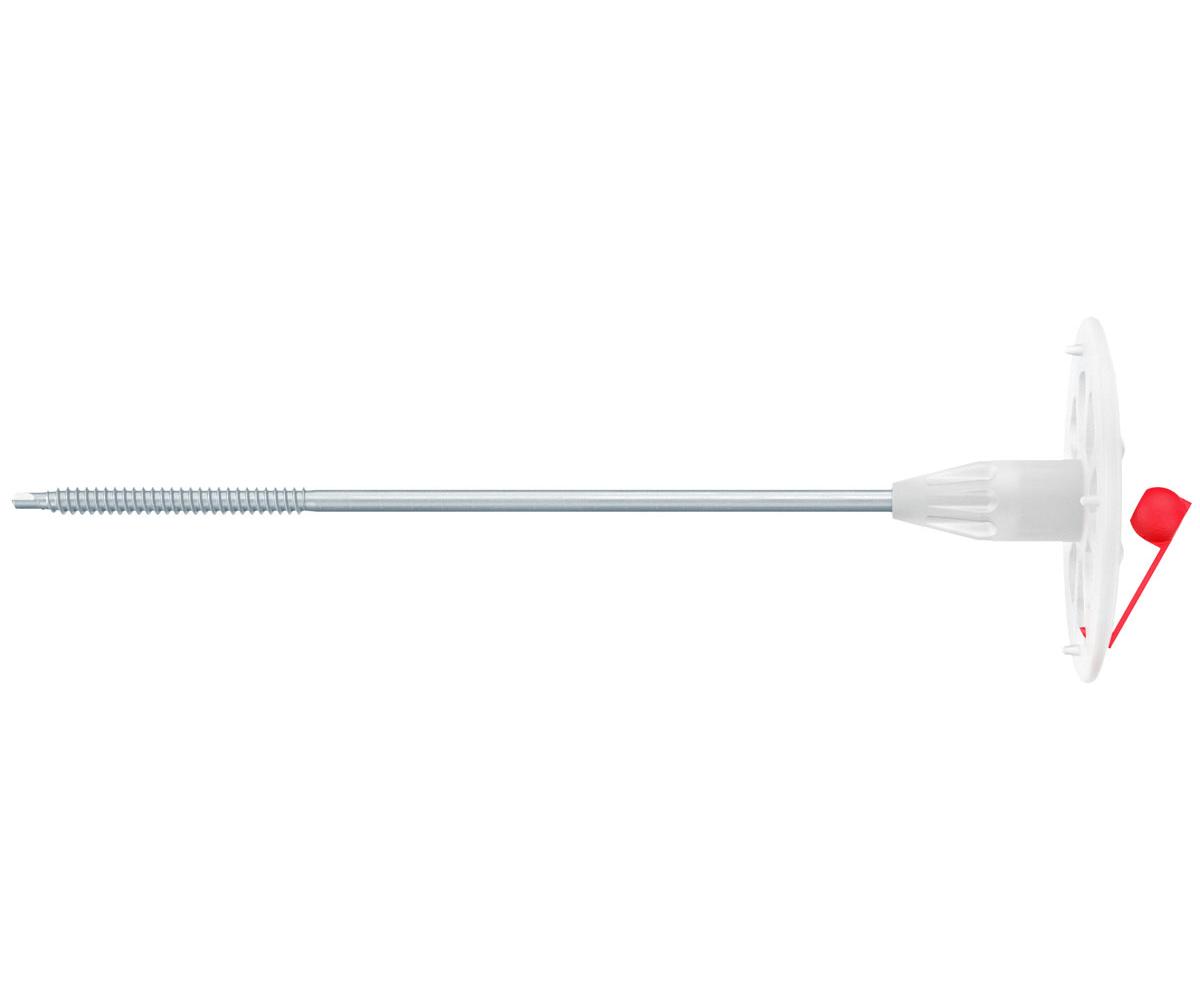

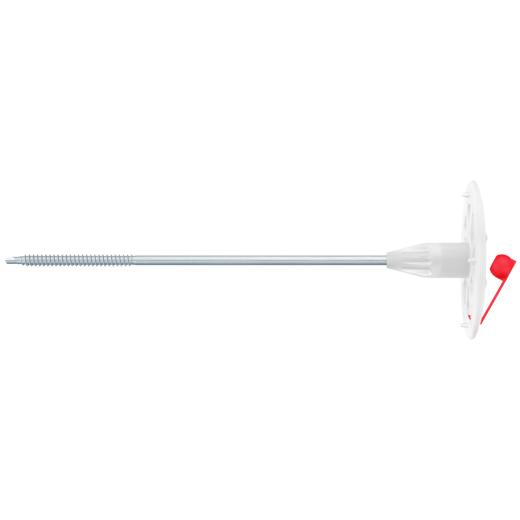

The fischer Termofix B is a corrosion-protected screw anchor for fixing pressure-resistant insulation boards in sheet metal up to 1.5 mm thickness. The insulation anchor consists of a holding plate made of polypropylene and a pre-assembled drilling screw. The screw is protected against corrosion with a Delta-Seal coating, providing long-term security. The Termofix B is set with a cordless drill in through-hole installation without pre-drilling. The pre-assembled screw saves time. The screw head is sealed against heat loss with the closure ball. The flexible head compensates for thermally induced tensions and prevents damage.
Advantages
- The pre-assembled screw reduces processing time.
- High corrosion protection of the screw due to the Delta-Seal coating. This means security for years to come.
- The closure ball creates an air column above the screw head, reducing heat transmission losses.
- The flexible head compensates for thermally induced tensions and prevents damage.
- Can be combined with DT 90, DT 110, DT 140 insulation plates for very soft insulation materials.
Applications

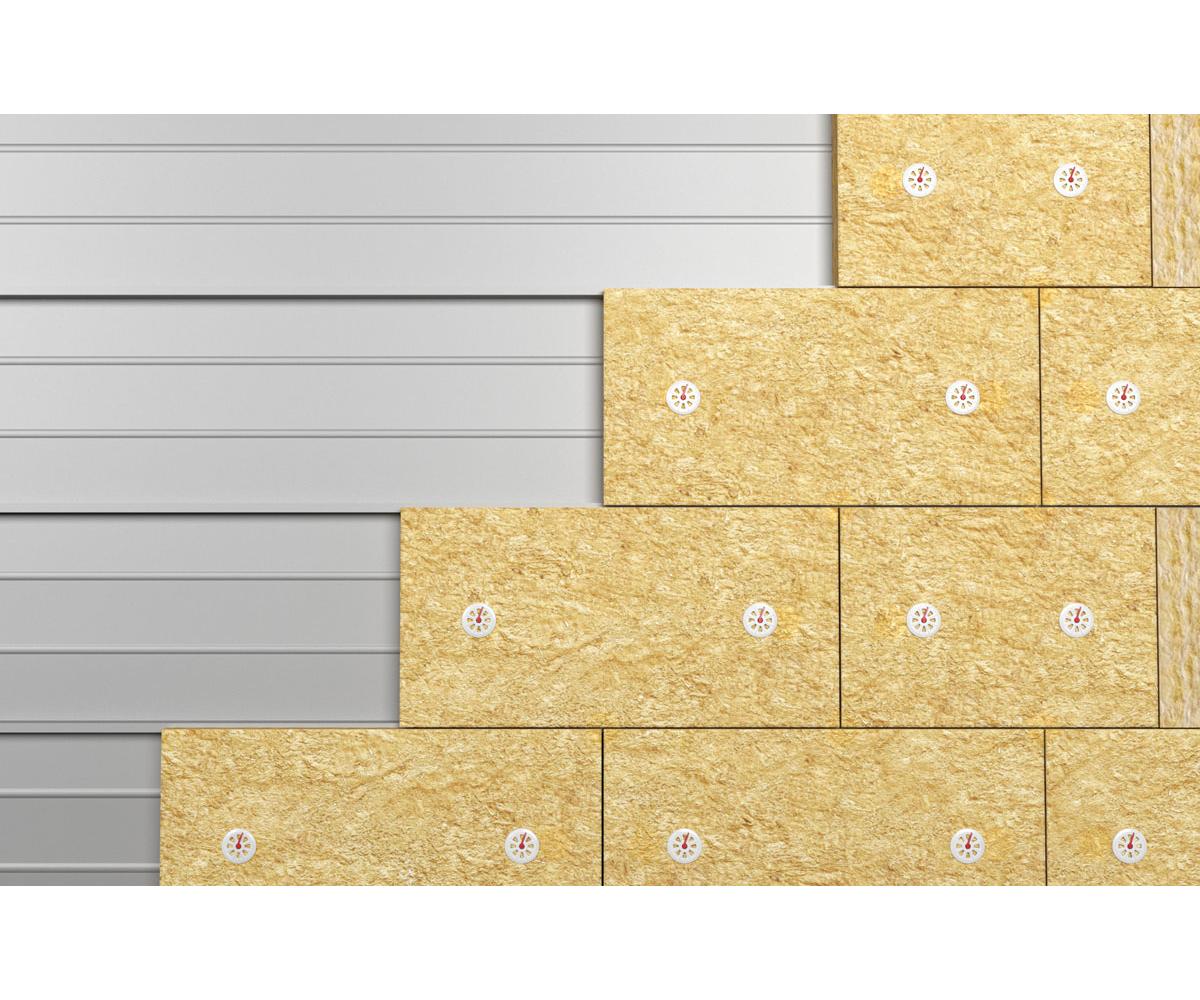

- Fastening of insulation boards on sheet metal substrates
- Surface-flush installation in thermal insulation composite systems (e.g., polystyrene)
Construction materials
- Sheet metal / Trapezoidal sheet up to 1.5 mm
Product characteristics:
| Drive | PH2 |
| Drill end diameter | 8 [mm] |
| Dowel length | 160 [mm] |
| Installation type | Screw anchor |
| Max. usable length | 140 [mm] |
| Max. thickness of the component | 140 [mm] |
| Min. anchoring depth | 20 [mm] |
| Screw length | 150 [mm] |
| Plate diameter | 60 [mm] |
