Details
Products description

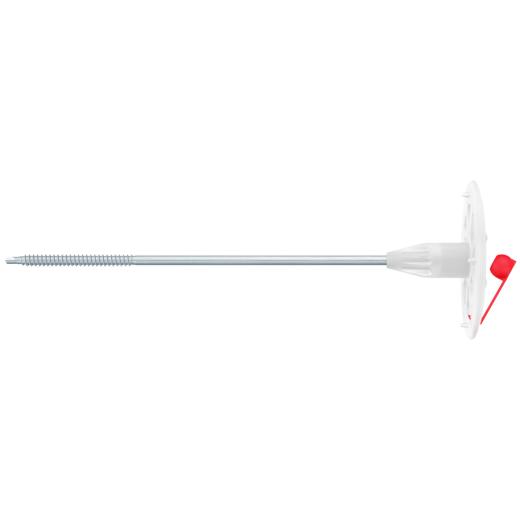

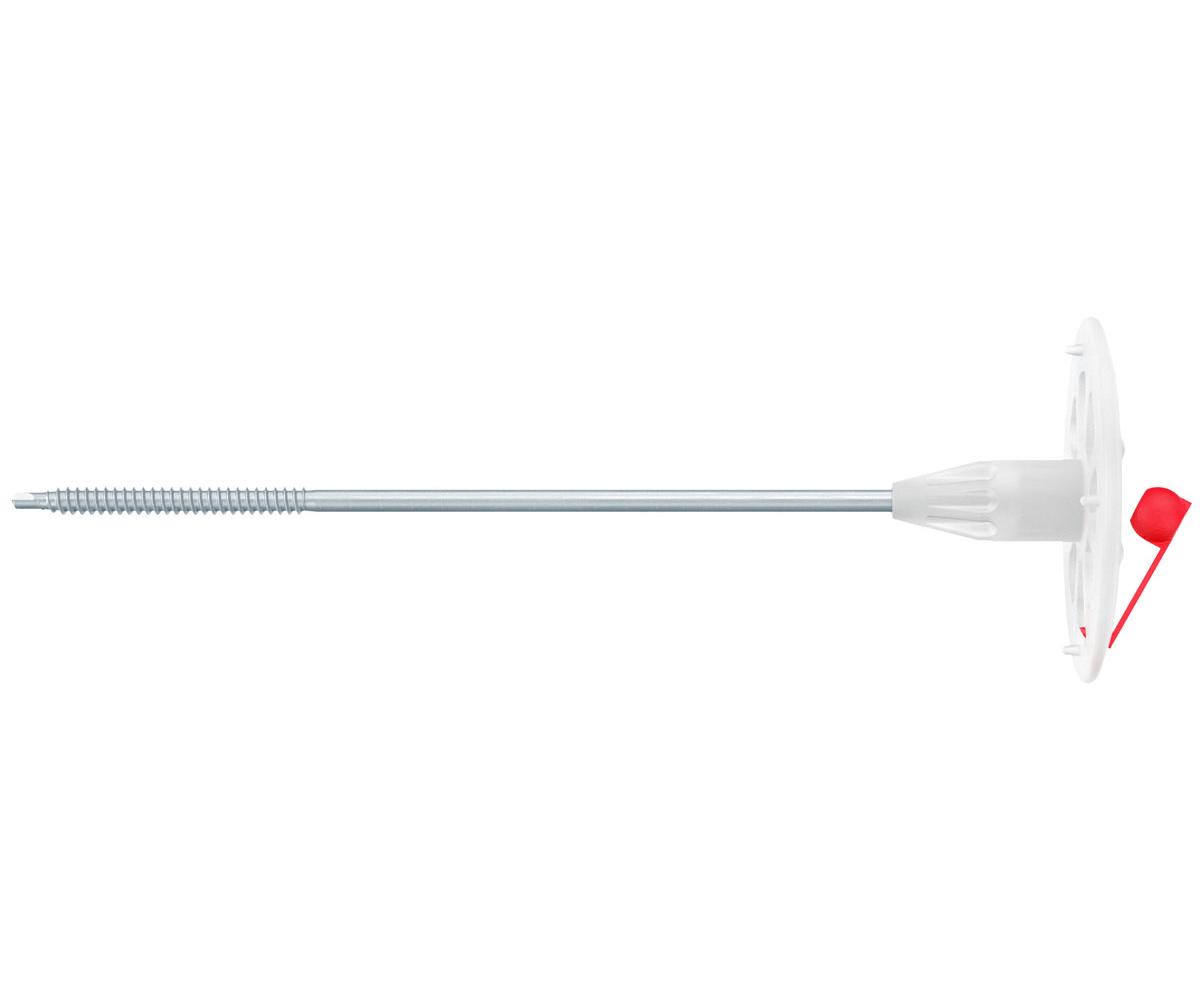

The fischer Termofix B is a corrosion-protected screw anchor for fastening pressure-resistant insulation panels in sheet metal up to 1.5 mm thickness. The insulation anchor consists of a holding plate made of polypropylene and a pre-mounted drilling screw. The screw is protected against corrosion with a Delta-Seal coating, providing long-term security. The Termofix B is installed with a cordless drill driver in through-hole mounting without pre-drilling. The pre-mounted screw saves time. The screw head is sealed against heat loss with the closure ball. The flexible head compensates for thermally induced tensions and prevents damage.
Advantages
- The pre-mounted screw shortens processing time.
- High corrosion protection of the screw due to the Delta-Seal coating. This means security for years to come.
- The closure ball creates an air column above the screw head, reducing thermal transmission losses.
- The flexible head compensates for thermally induced tensions and prevents damage.
- Compatible with very soft insulation materials when combined with insulation washers DT 90, DT 110, DT 140.
Applications

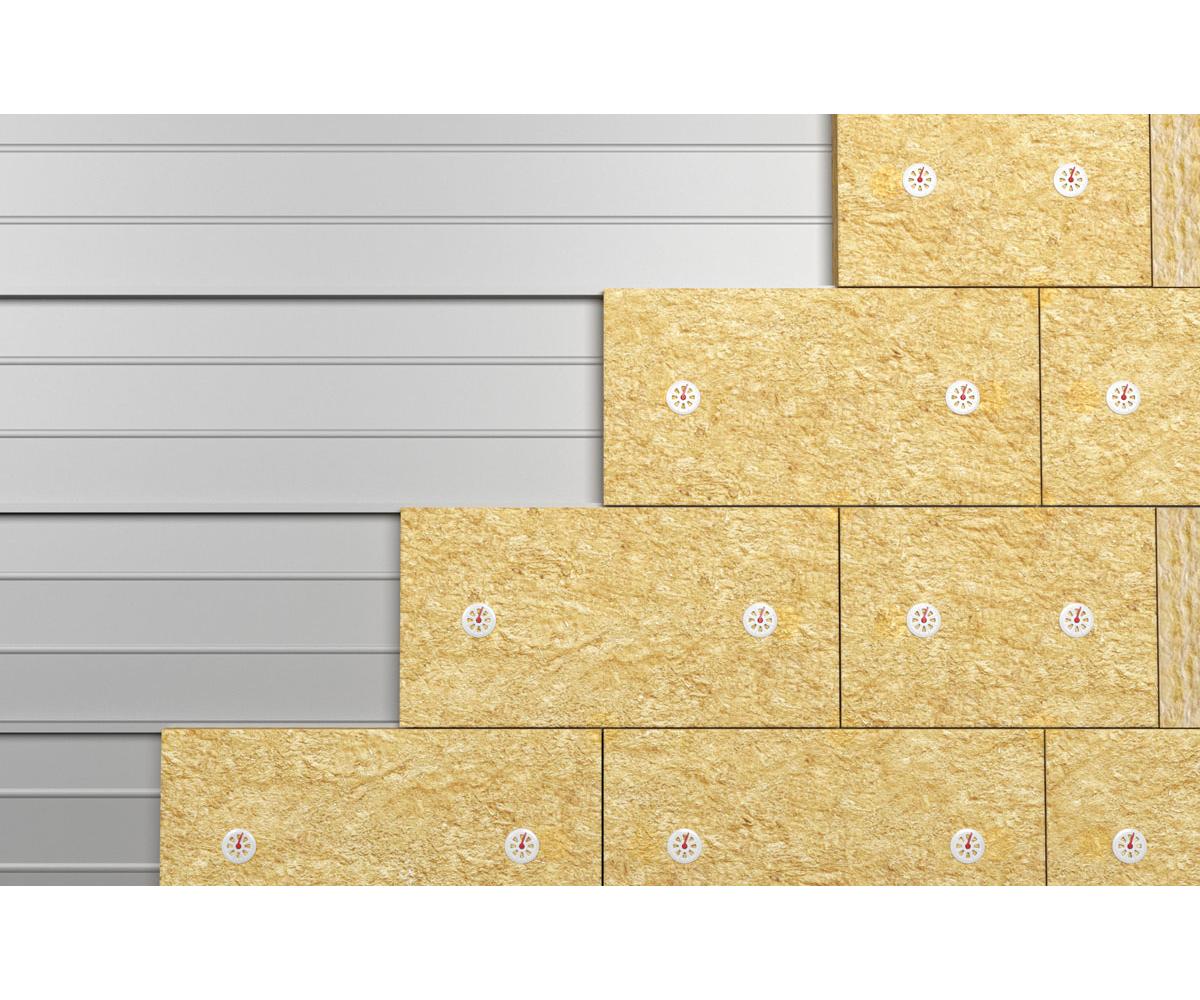

- Fastening of WDVS insulation panels on sheet metal substrates
- Surface-flush mounting in WDVS insulation materials, e.g., polystyrene
Materials
- Sheet metal / Trapezoidal sheet up to 1.5 mm
Product Characteristics:
| Drive | PH2 |
| Drill bit diameter | 8 [mm] |
| Dowel length | 90 [mm] |
| Mounting type | Screw anchor |
| Max. usable length | 70 [mm] |
| Max. thickness of the attachment | 70 [mm] |
| Min. anchoring depth | 20 [mm] |
| Screw length | 80 [mm] |
| Plate diameter | 60 [mm] |
