Products description

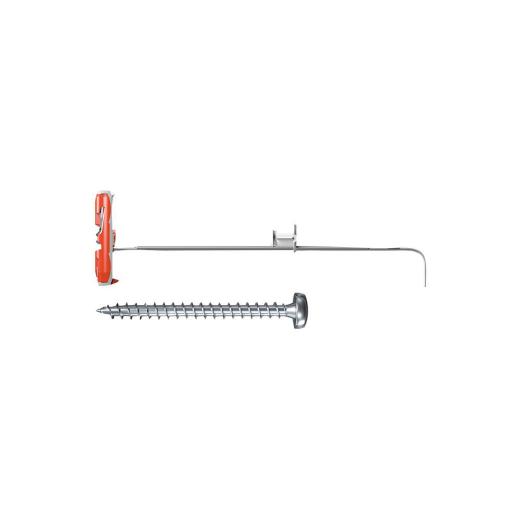

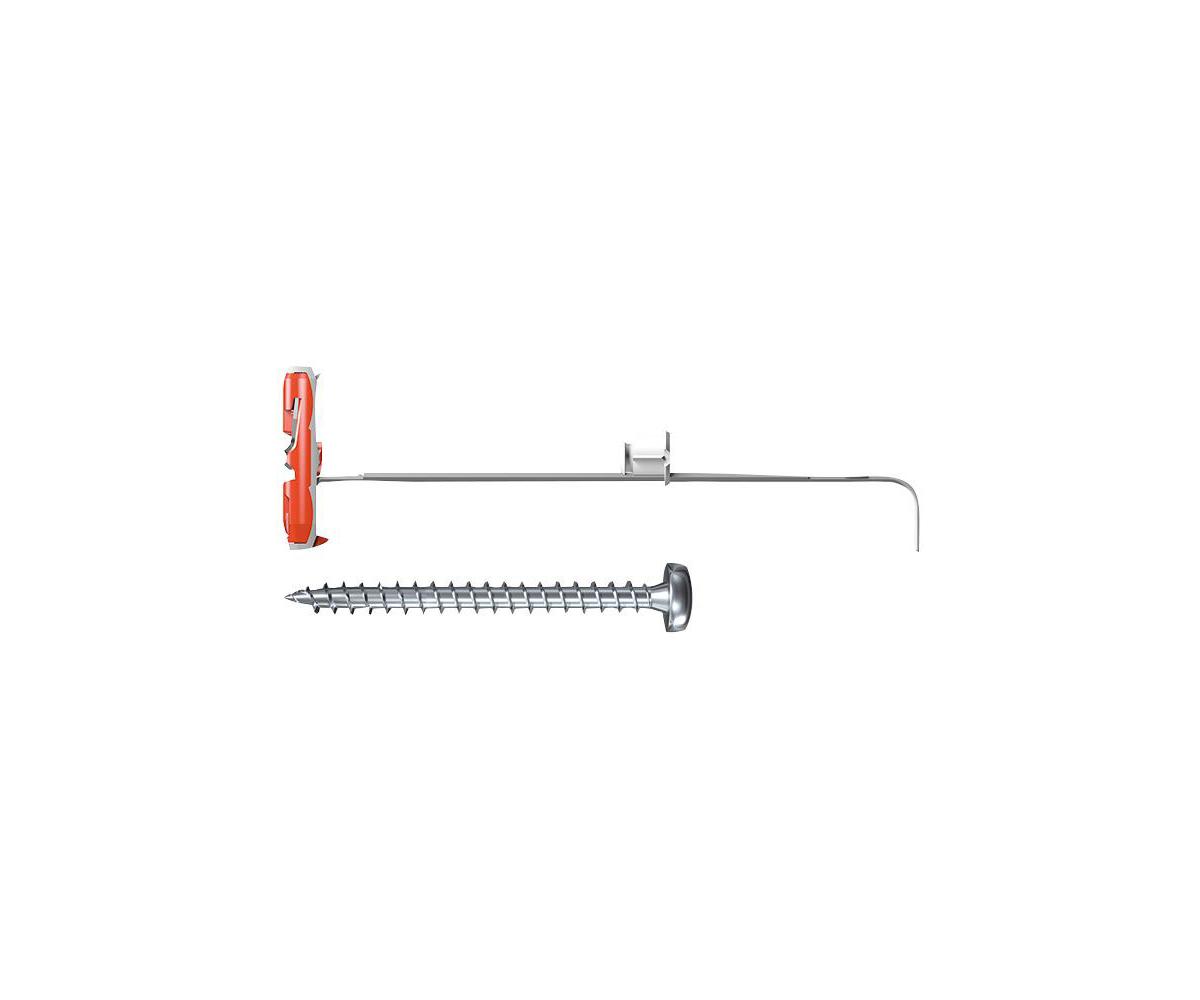

fischer DuoTec 10 S PH with panhead screw
Applications
- Kitchen hanging cabinets, Living room cabinets, Shelves, Wardrobes, Handrails, Pictures, Mirrors, Lamps, Heavy hanging baskets
Building materials
Suitable for:
- Gypsum plasterboard, Gypsum fibreboard, Wooden panels, such as OSB boards, chipboard, MDF sheets, Steel plates, Plastic boards, Hollow blocks made from concrete
Also functioning in:
- Solid materials, such as concrete and wood

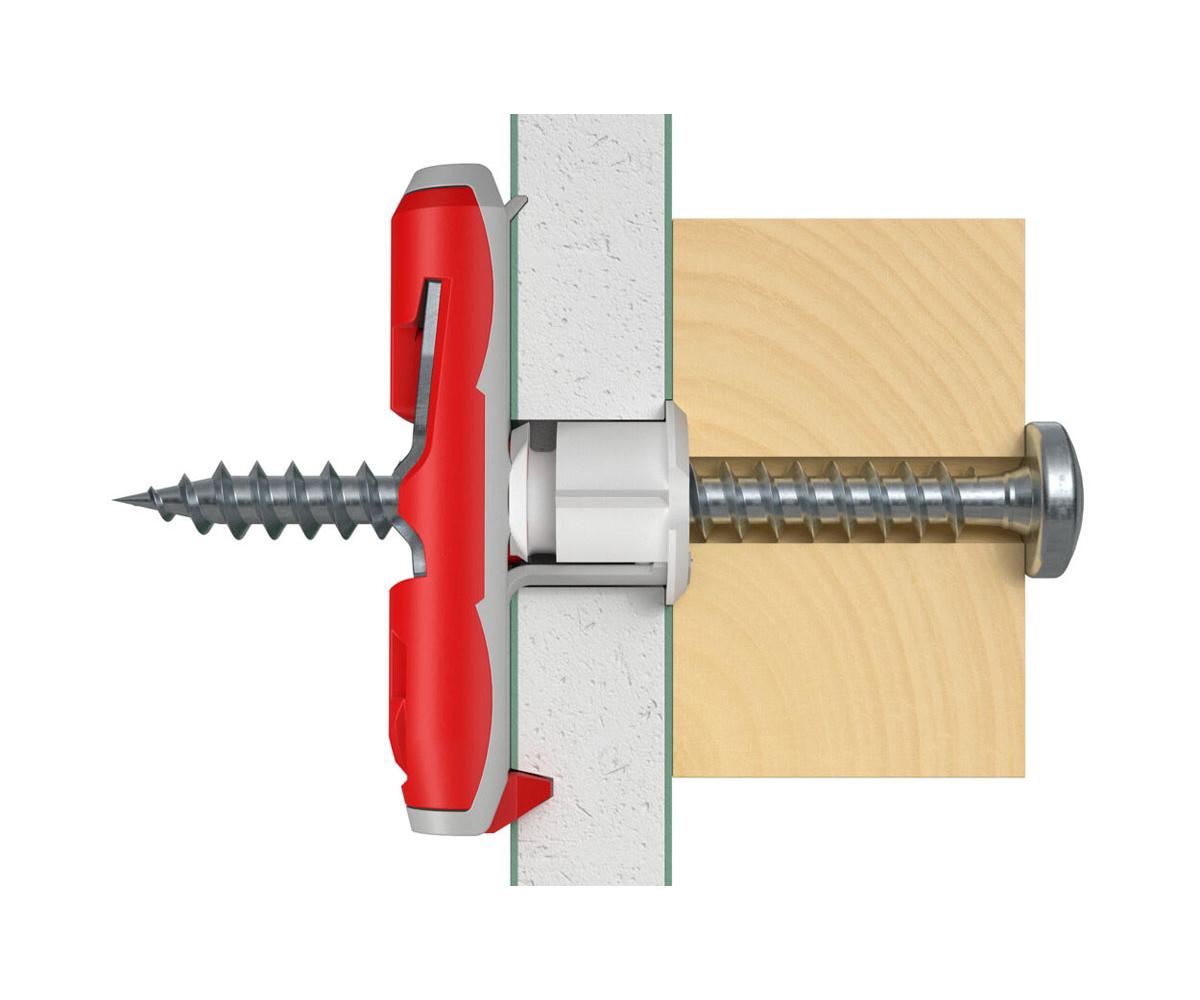

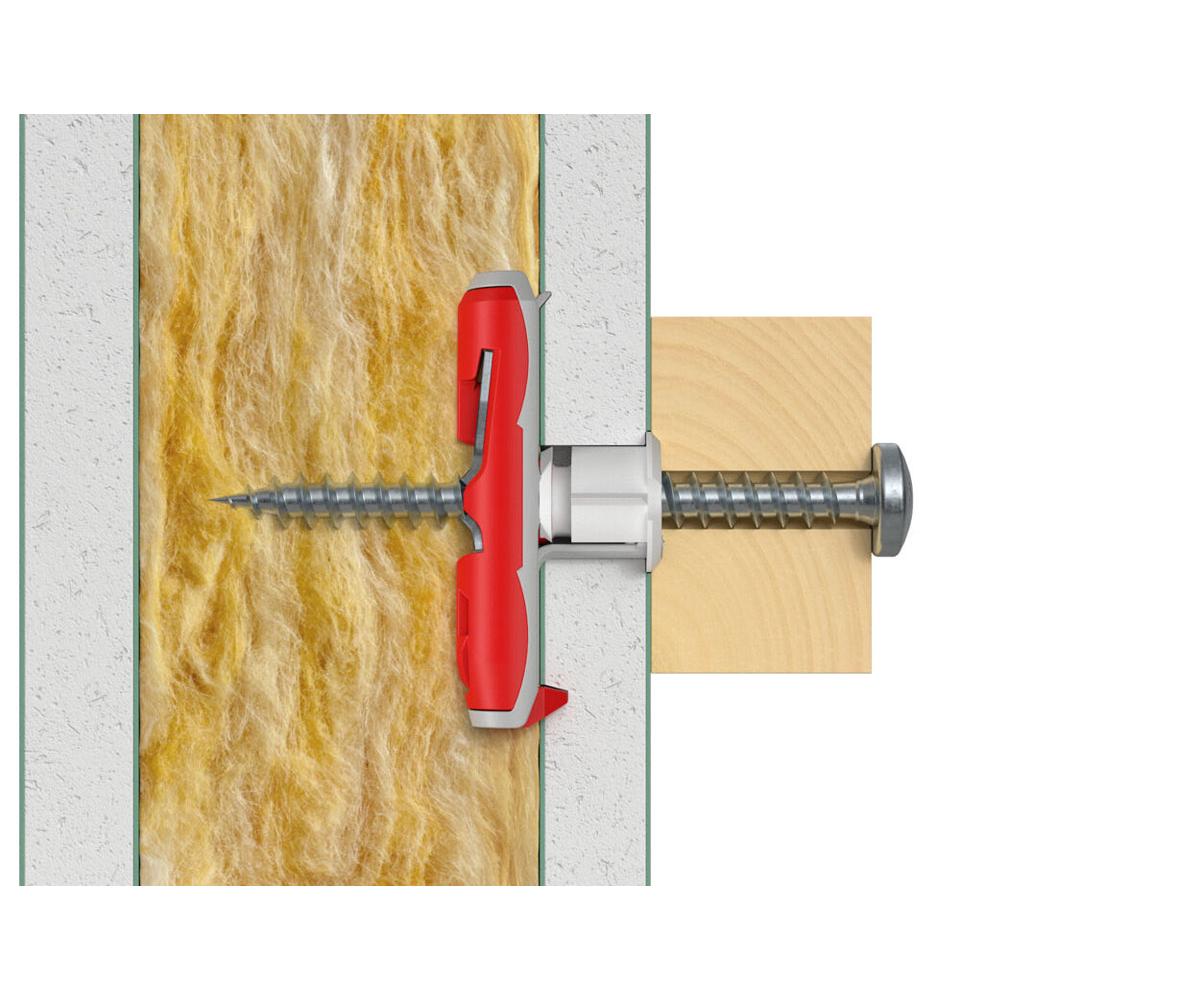

Technical data in board material
fischer DuoTec S PH - with panhead chipboard screw
| Drill hole diameter | d0 | 10 | [mm] |
| Min. panel thickness | dp | 12 | [mm] |
| Max. panel thickness | dp | 55 | [mm] |
| Min. cavity depth | a | 40 | [mm] |
| Screw diameter | ds | - | [mm] |
| Screw length | ls | 60 | [mm] |

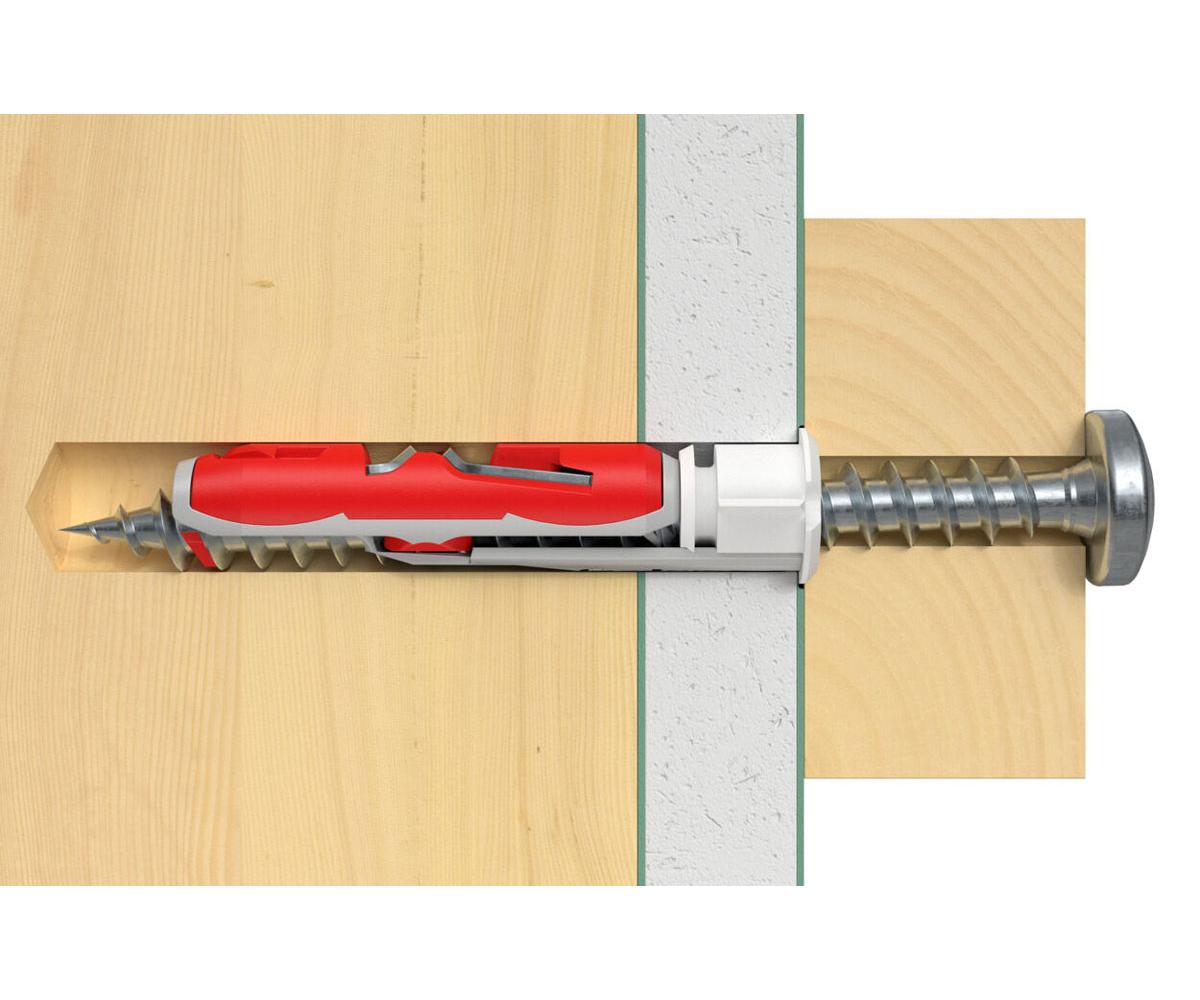

Technical data in solid materials
fischer DuoTec S PH - with panhead chipboard screw
| Drill hole diameter | d0 | 10 | [mm] |
| Min. panel thickness | h1 | 65 | [mm] |
| Screw diameter | Ø | 5,0 | [mm] |
| Min. Screw length | ls | 60 | [mm] |
| Anchor length | ds | 50 | [mm] |
| Max. panel thickness | tfix | 27 | [mm] |
This Product was added to our catalogue on 08/01/2024.
