fischer

fischer Frame fixing DuoXpand 10 x 140 T - 50 pieces

fischer Frame fixing DuoXpand 10 x 140 T - 50 pieces
For a larger view click on the thumbnail
fischer Frame fixing DuoXpand 10 x 140 T - 50 pieces
fischer Frame fixing DuoXpand 10 x 140 T - 50 pieces
72,90 EUR
1,46 EUR per piece
19 % VAT incl. excl. Shipping costs
Add to cart
Shipping time: 2 - 3 working days
Product no.: F562158
MPN: 562158
More products of: fischer
Weight: 2.1980 KG


Products description

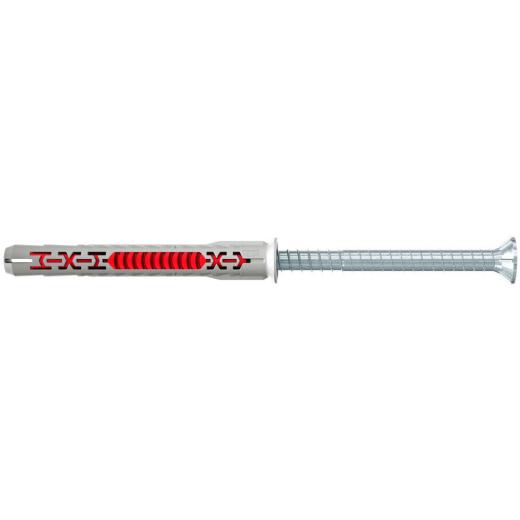

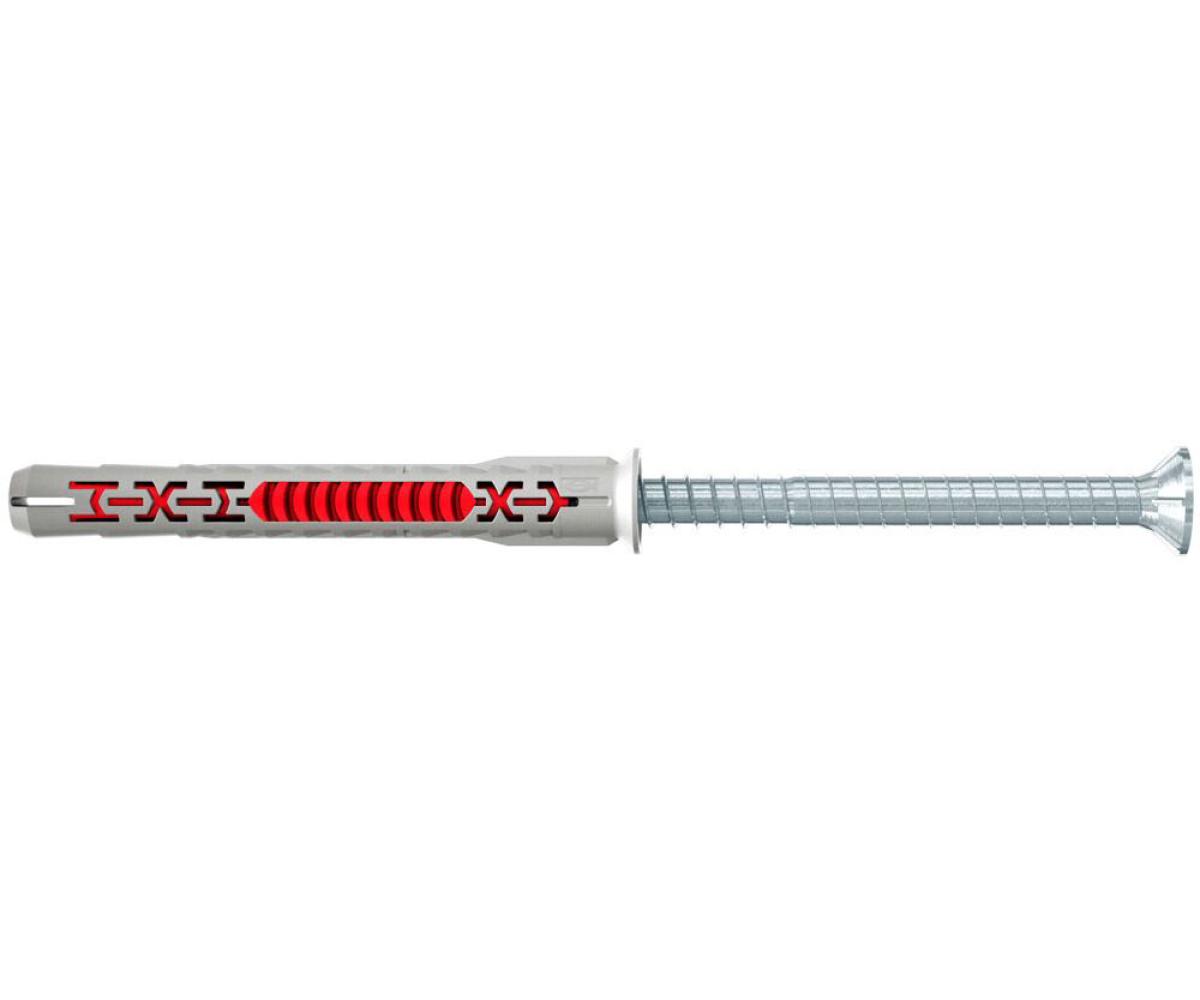

fischer Frame fixing DuoXpand 10 x 140 T Countersunk screw

Version

  • zinc-plated steel


Applications

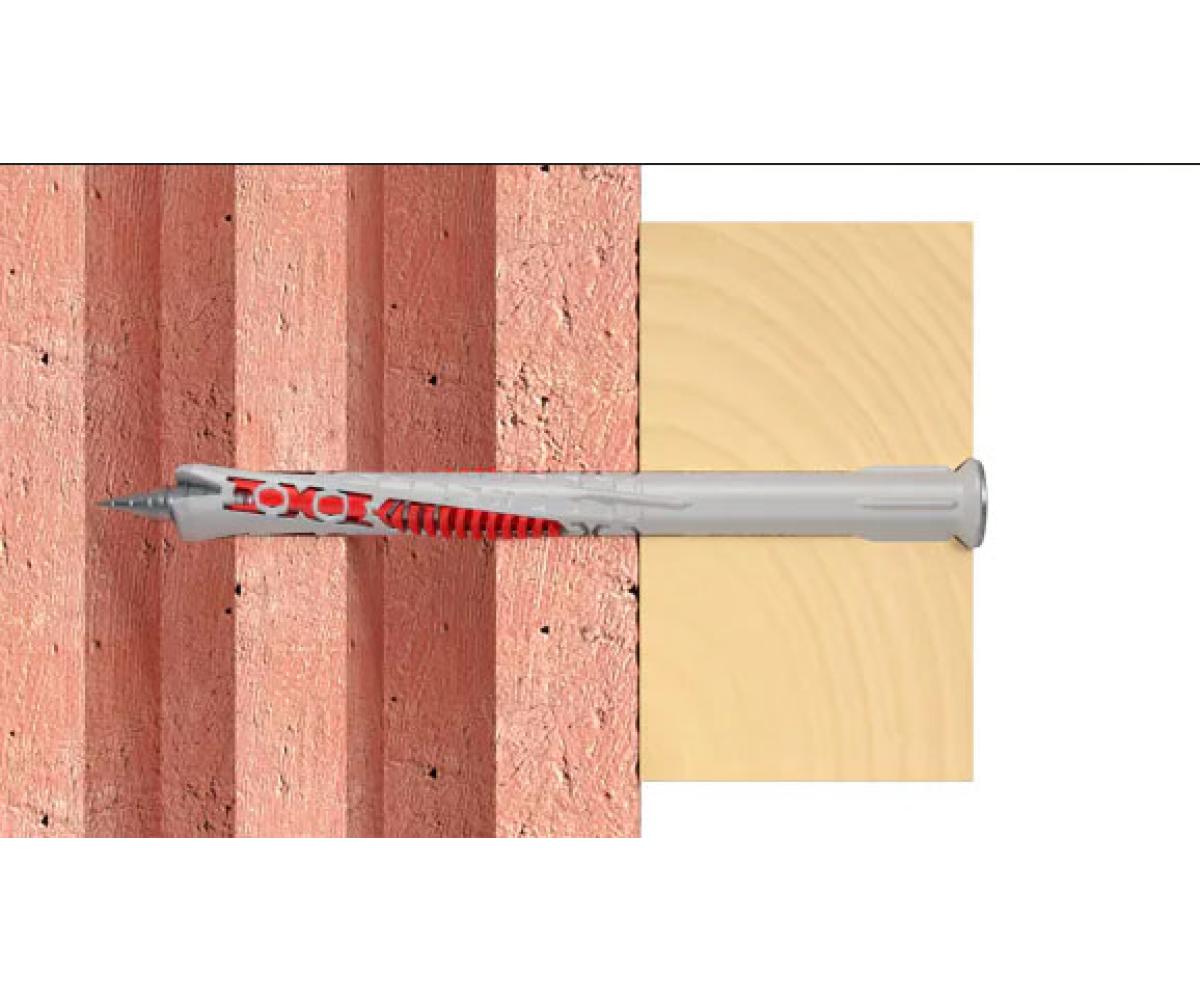

  • façade, ceiling and roof substructures made of wood or metal, windows, gates and doors, wardrobes, kitchen hanging cabinets, squared timbers, beams, TV consoles, wall cladding, metal angles, metal brackets, cable ducts, cable trays


Building materials
Approved for:

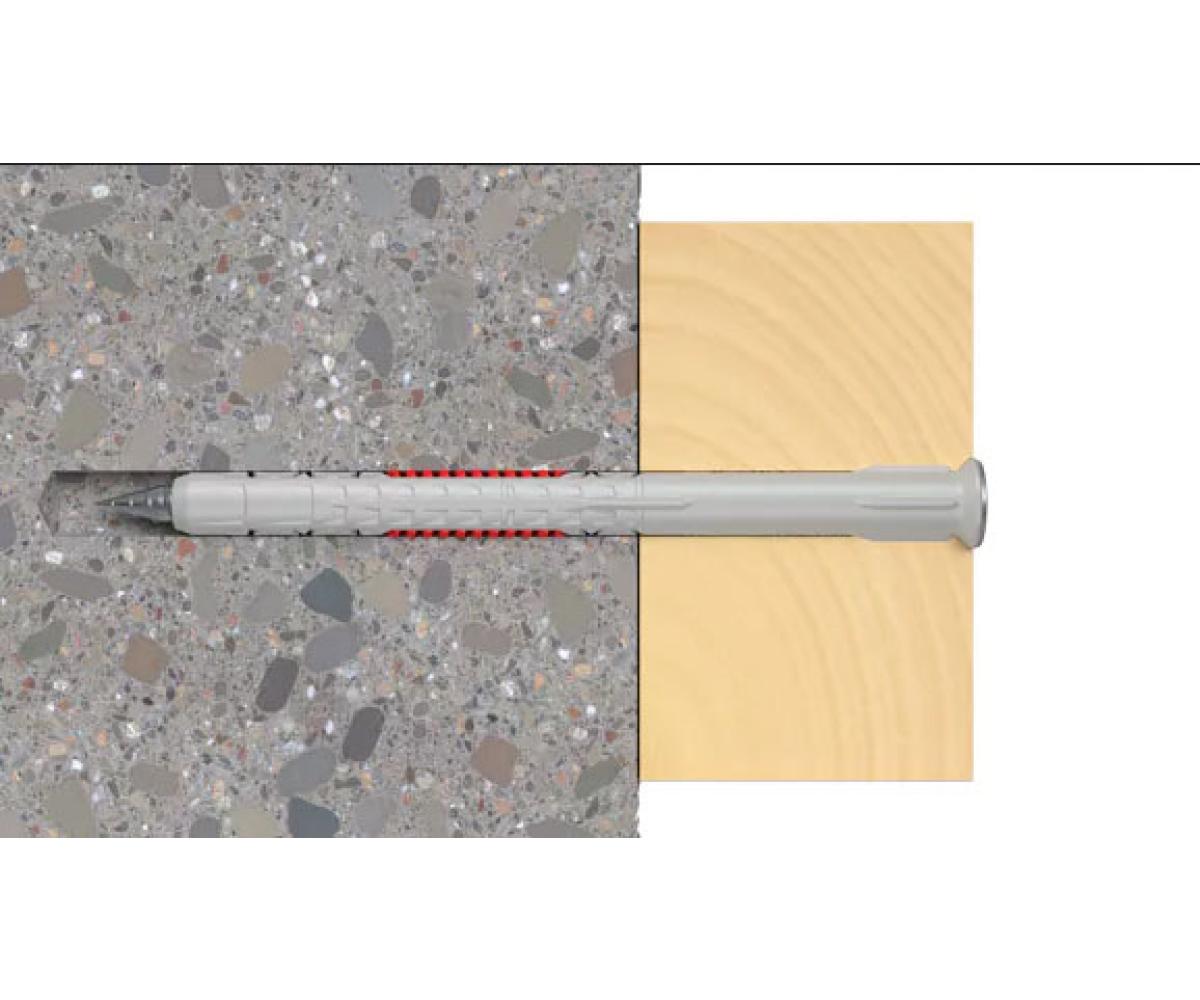

  • concrete >= C12/15, solid brick, solid sand-lime brick, solid block of lightweight and normal weight concrete, vertically perforated brick, perforated sand-lime brick, hollow block of lightweight concrete, aerated concrete
Also suitable for:
  • natural stone with dense structure, solid gypsum slabs

Approvals
  • ETA-21/0324, DoP No. 0244


Technical data

 ApprovalETAyes
 Drill hole diameterd010[mm]
 Min. drill hole depth for through fixingsh2150[mm]
 Usable length at anchorage depth hmom  = 50 mmtfix90[mm]
 Usable length at anchorage depth hmom  = 70 mmtfix70[mm]
 Usable length at anchorage depth hmom  = 140 mmtfix-[mm]
 Usable length at anchorage depth hmom  = 160 mmtfix-[mm]
 Anchor lengthl140[mm]
 DriveTT40
