Bolt anchor FAZ II Plus 10/20 H R - 20 pieces

Product no.: F564692

fischer Bolt anchor FAZ II Plus 10/20 H R

Execution

• stainless steel

Applications

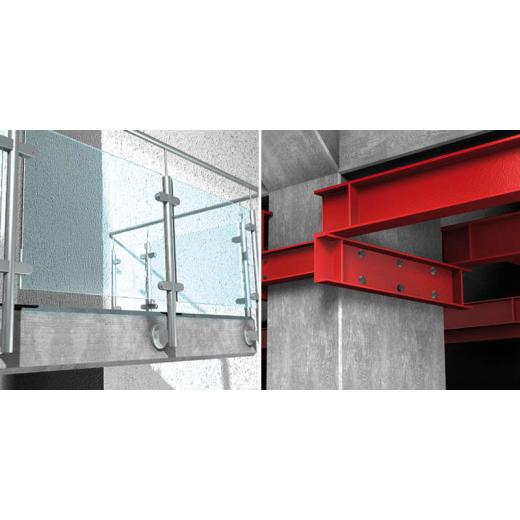

• Anchor plates with elongated holes, facade substructures with elongated holes, wood constructions, tie rods, beam connections

Building materials
Approved for:

• Concrete C20/25 to C50/60, cracked and uncracked

Also suitable for:

• Concrete C12/15, natural stone with dense structure

Approval

• ETA-05/0069, DoP 0186, DoP No. 0009, DoP No. 0121, VdS CEA 4001 :2008-11(03)

Technical data

Approval	ETA	yes
Approval	ICC	yes
Approval	Seismic	C1/C2
Drill diameter	d0	10	[mm]
Min. drill hole depth for through fixings	h2	95	[mm]
Max. usable length hef, max. / hef, min.	tfix	20/40	[mm]
Anchor length	l	105	[mm]
Thread	Ø x Length	M 10 x 63	[mm]
Width across nut	SW	17	[mm]

Price:

103,90 EUR

19 % VAT incl. excl. Shipping costs

5,20 EUR per piece
