Bolt anchor FAZ II Plus 12/100 HBS - 20 pieces

Product no.: F564683

fischer Bolt anchor FAZ II Plus 12/100 HBS

Execution

• galvanized steel

Applications

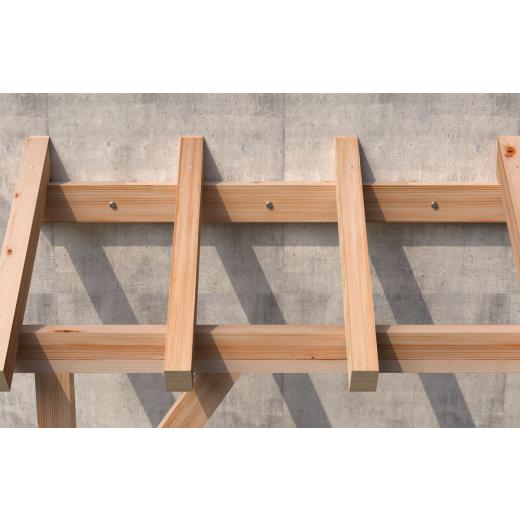

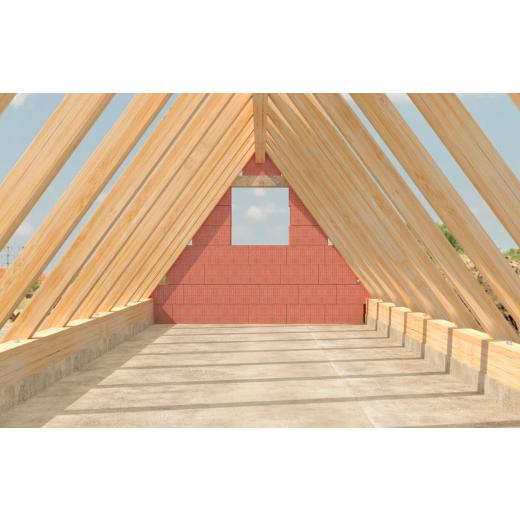

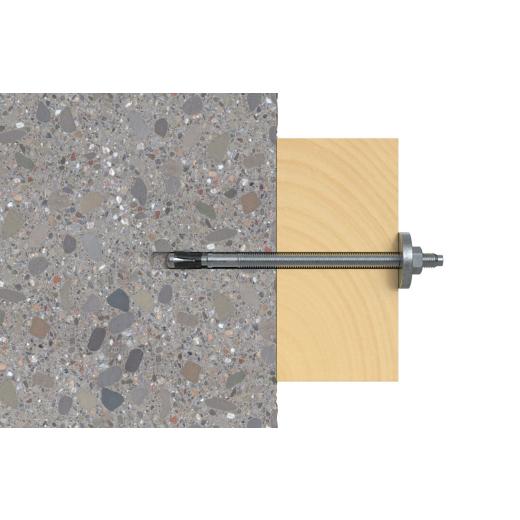

• Anchor plates with elongated holes, facade substructures with elongated holes, wood constructions, tie rods, beam connections

Building materials
Approved for:

• Concrete C20/25 to C50/60, cracked and uncracked

Also suitable for:

• Concrete C12/15, natural stone with dense structure

Approval

• ETA-05/0069, DoP 0186, DoP No. 0009, DoP No. 0121, VdS CEA 4001 :2008-11(03)

Technical data

Approval	ETA	yes
Approval	ICC	yes
Approval	Seismic	C1/C2
Drill diameter	d0	12	[mm]
Min. drill hole depth for through fixings	h2	189	[mm]
Max. usable length hef, max. / hef, min.	tfix	100/120	[mm]
Anchor length	l	205	[mm]
Thread	Ø x Length	M 12 x 151	[mm]
Width across nut	SW	19	[mm]
Washer (outer diameter x thickness)	58 x 6	[mm]

Price:

94,90 EUR

19 % VAT incl. excl. Shipping costs

4,75 EUR per piece
