fischer Bolt anchor FAZ II Plus 16/5 - 10 pieces

Product no.: F564594

fischer Bolt anchor FAZ II Plus 16/5

Execution

• Electrolytically galvanized steel

Applications

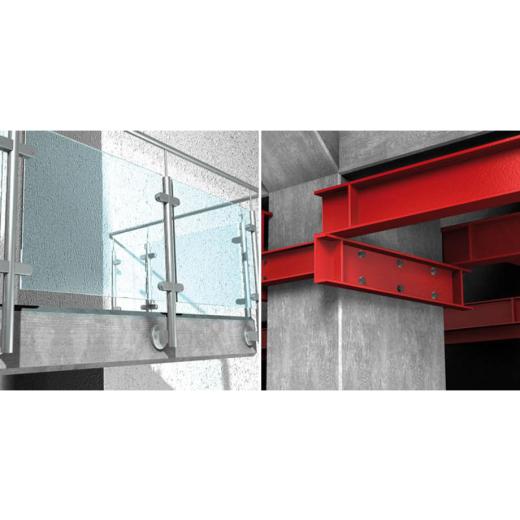

• Steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, façades, timber constructions

Building materials
Approved for:

• Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

• Concrete C12/15, Concrete C80/95 (classification available), Steel fiber concrete (classification available), Solid sand-lime brick (classification available)

Approval

• ETA-19/0520, DoP No. 0334, Z-21.1-2152, ESR-2948

Technical data

Approval	ETA	yes
Approval	ICC	yes
Approval	Seismic	C1/C2
Drill diameter	d0	16	[mm]
Min. drill hole depth for through fixings	h2	115	[mm]
Max. usable length hef, max. / hef, min.	tfix	5/25	[mm]
Anchor length	l	128	[mm]
Thread	Ø x Length	M 16 x 64	[mm]
Width across nut	SW	24	[mm]

Price:

42,90 EUR

19 % VAT incl. excl. Shipping costs

4,29 EUR per piece
