fischer Bolt anchor FAZ II Plus12/80 - 20 pieces

Product no.: X-F564590

fischer Bolt anchor FAZ II Plus 12/80

Execution

  • Electrolytically galvanized steel


Applications

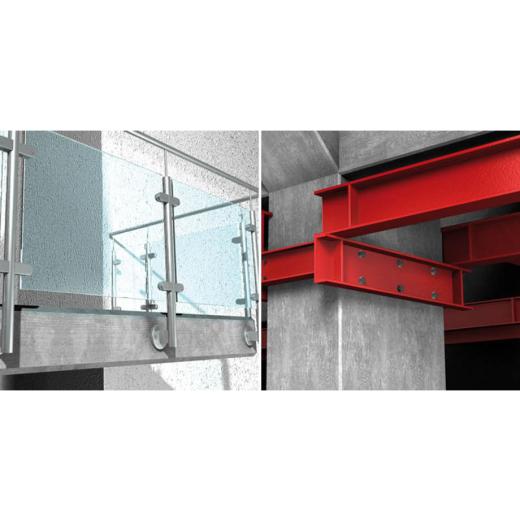

  • Steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, façades, timber constructions


Building materials
Approved for:

  • Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

  • Concrete C12/15, Concrete C80/95 (classification available), Steel fiber concrete (classification available), Solid sand-lime brick (classification available)


Approval

  • ETA-19/0520, DoP No. 0334, Z-21.1-2152, ESR-2948


Technical data

Approval ETA yes
Approval ICC yes
Approval Seismic C1/C2
Drill diameter d0 12 [mm]
Min. drill hole depth for through fixings h2 170 [mm]
Max. usable length hef, max. / hef, min. tfix 80/100 [mm]
Anchor length l 180 [mm]
Thread Ø x Length M 12 x 131 [mm]
Width across nut SW 19 [mm]

Price:

72,90 EUR

19 % VAT incl. excl. Shipping costs

3,65 EUR per piece
