fischer Bolt anchor FAZ II Plus 20/160 - 5 pieces

Product no.: F564604

fischer Bolt anchor FAZ II Plus 20/160

Execution

• Electrolytically galvanized steel

Applications

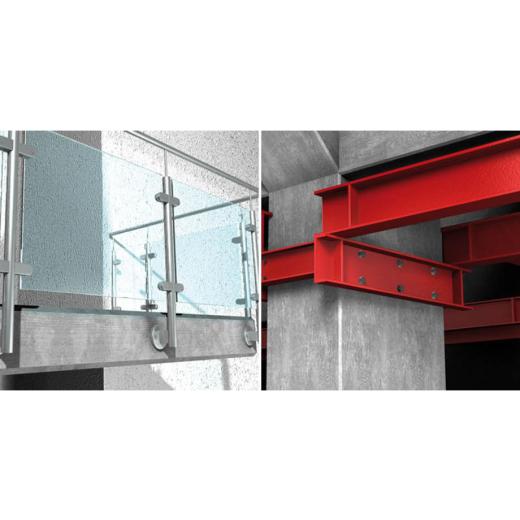

• Steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, façades, timber constructions

Building materials
Approved for:

• Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

• Concrete C12/15, Concrete C80/95 (classification available), Steel fiber concrete (classification available), Solid sand-lime brick (classification available)

Approval

• ETA-19/0520, DoP No. 0334, Z-21.1-2152, ESR-2948

Technical data

Approval	ETA	yes
Approval	ICC	yes
Approval	Seismic	C1/C2
Drill diameter	d0	20	[mm]
Min. drill hole depth for through fixings	h2	285	[mm]
Max. usable length hef, max. / hef, min.	tfix	160/-	[mm]
Anchor length	l	302	[mm]
Thread	Ø x Length	M 20 x 100	[mm]
Width across nut	SW	30	[mm]

Price:

93,90 EUR

19 % VAT incl. excl. Shipping costs

18,78 EUR per piece
