Scaffolding dowel "POWERDRIVE-WALL" 14 x 185 mm - 250 pieces

Scaffolding dowel POWERDRIVE-WALL 14 x 185 mm - 250 pieces
For a larger view click on the thumbnail
61,90 EUR
0,25 EUR per piece
19 % VAT incl. excl. Shipping costs
Add to cart
Shipping time: 2 - 3 working days
Product no.: DS_10450-14185
MPN: 10450-14185
Weight: 6.0000 KG


Products description

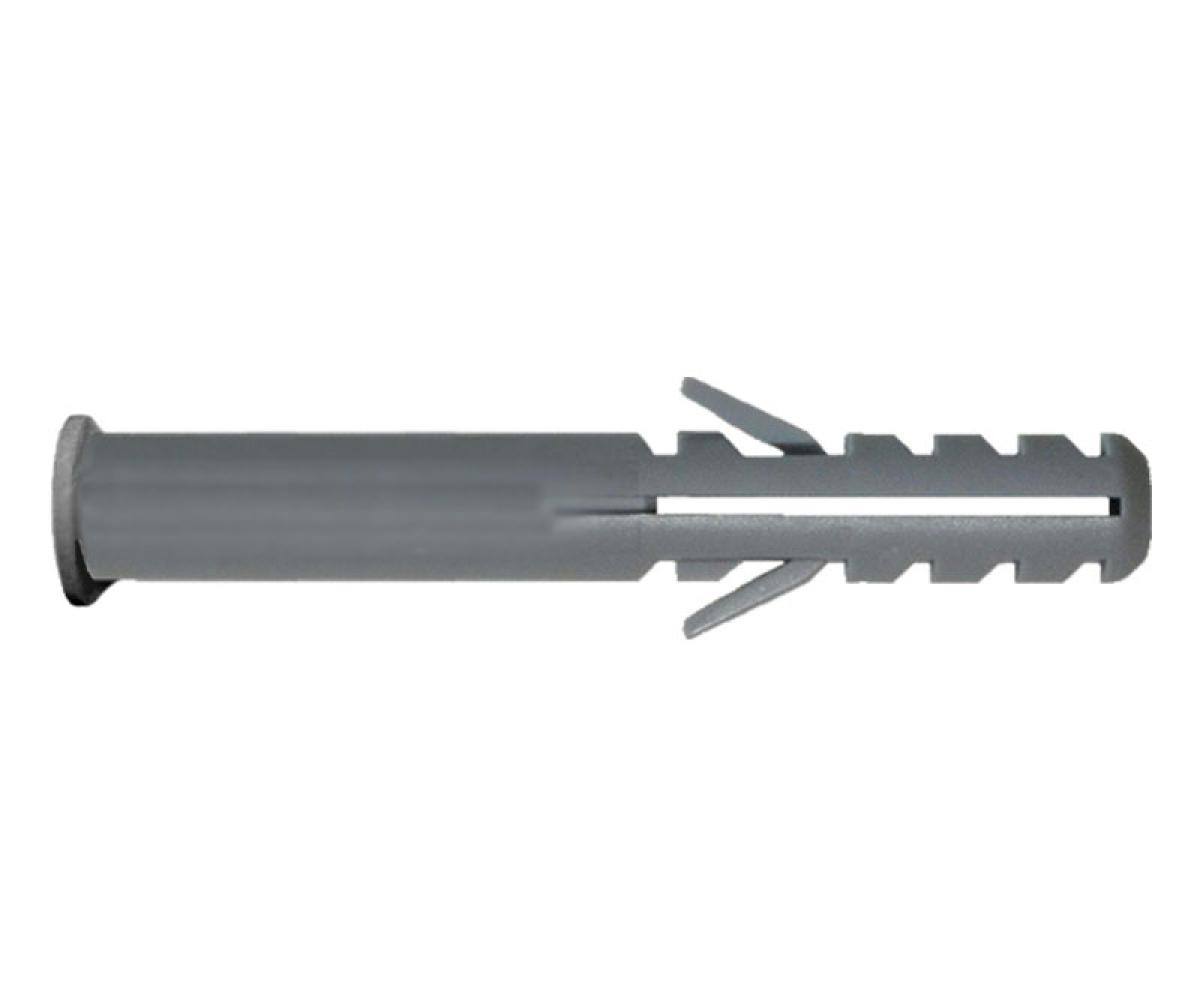

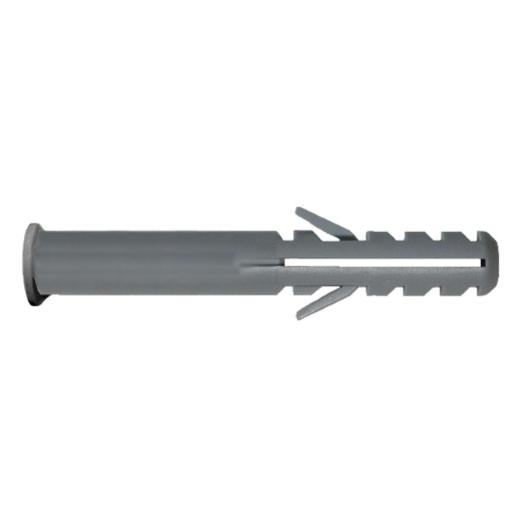

Scaffolding dowel "POWERDRIVE WALL" 14 x 185 with collar

Product description

  • The collar expansion anchor "POWERDRIVE WALL" made of pure nylon is suitable for use with scaffolding eyelets "EYE" Ø 12 mm. A special thread guide facilitates the insertion of a scaffolding eye up to 35 % and the second screw guide at the end of the expansion zone prevents stretching of the plug and thus achieves the highest pull-out values (e.g. for masonry bricks MZ12/20 = 21.5 kN). RING" or "KREUZ" dowel plugs are suitable for the system.

Applications
  • Facade scaffolding, ropes, chains, trellises, lights, clotheslines, hanging baskets.


Building materials
Suitable for the following building materials:

  • Concrete, natural stone, masonry bricks, perforated bricks, sand-lime bricks.
Conditionally suitable for the following building materials:
  • Aerated concrete


Technical details

Dowel diameterd14[mm]
Dowel lengthl185[mm]
Drill core diameterd014[mm]
Suitable for screw diameterds10 - 12[mm]
Min. drilling depthh185[mm]
Min. setting depthls70[mm]
