Products description

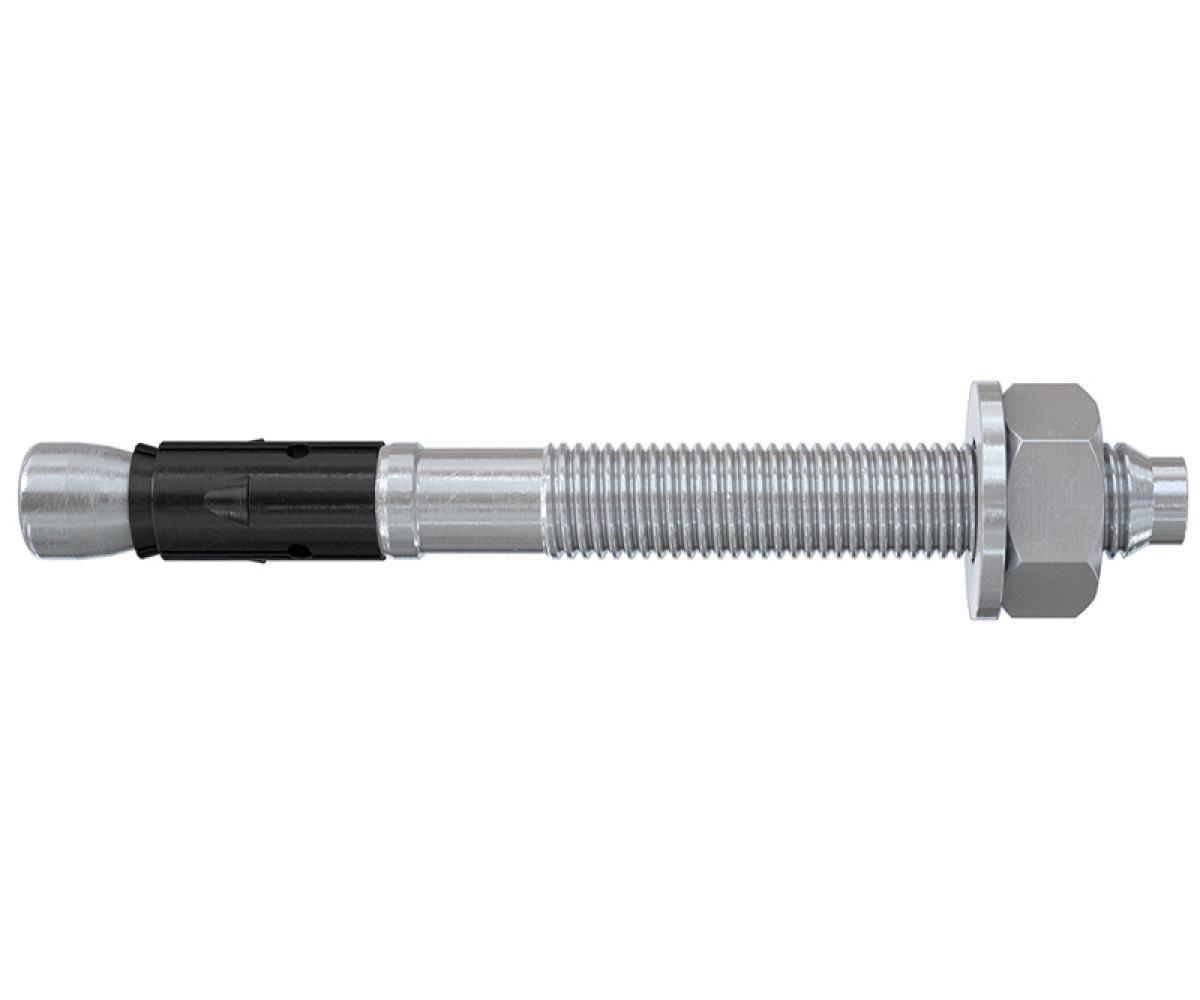

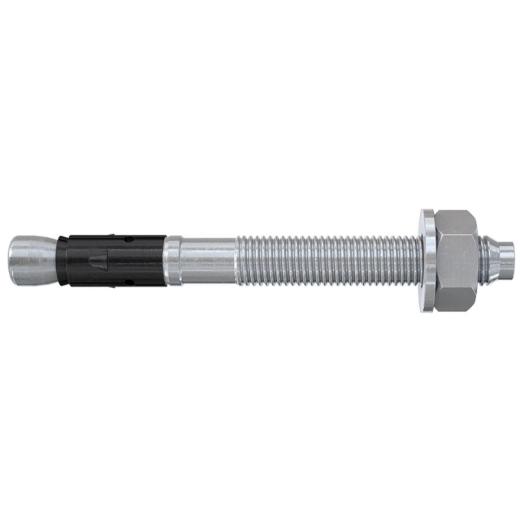

fischer Bolt anchor FAZ II Plus 8/10
Execution
- Electrolytically galvanized steel

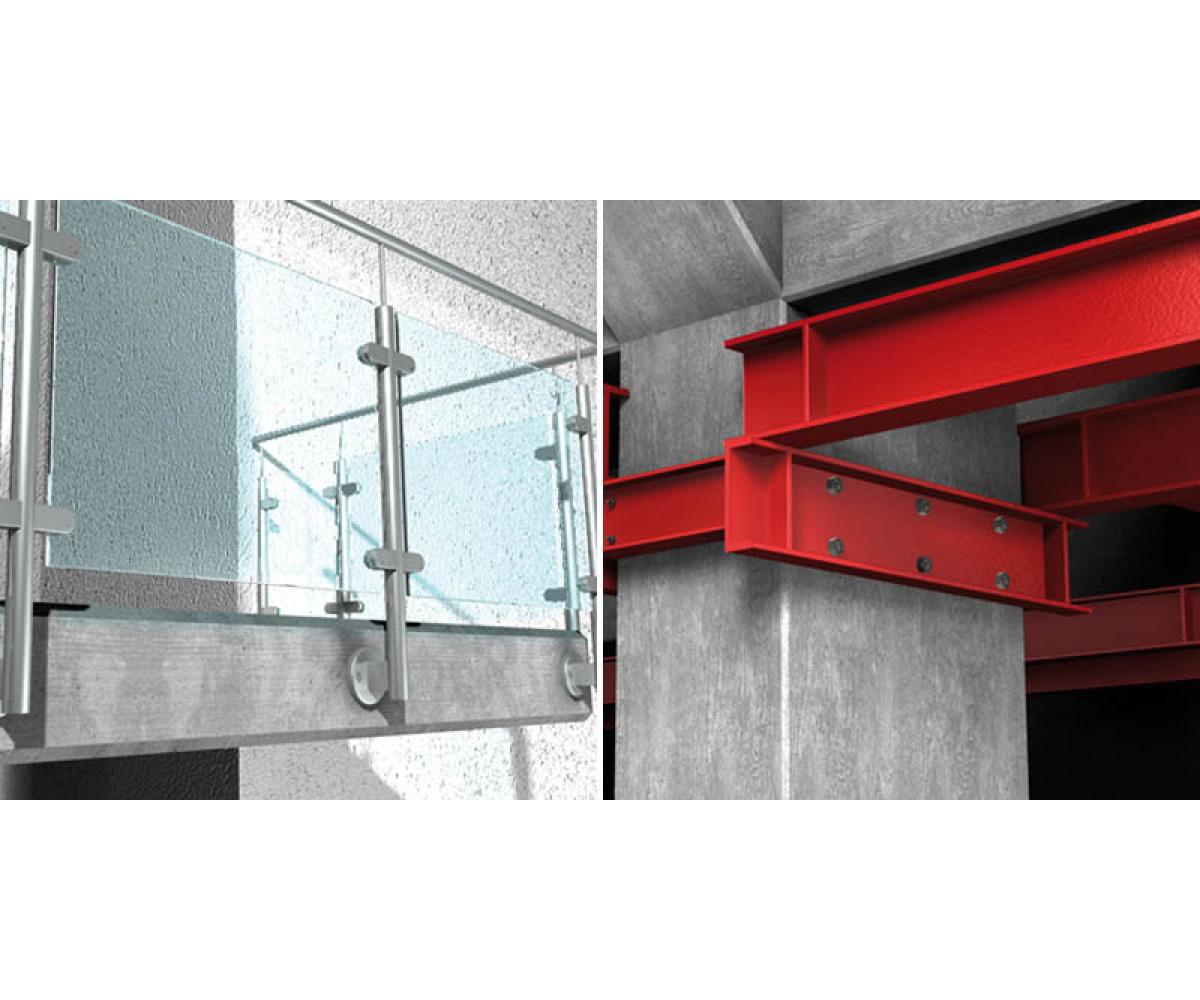

Applications
- Steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, façades, timber constructions
Building materials
Approved for:
- Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
- Concrete C12/15, Concrete C80/95 (classification available), Steel fiber concrete (classification available), Solid sand-lime brick (classification available)
Approval
- ETA-19/0520, DoP No. 0334, Z-21.1-2152, ESR-2948
Technical data
| Approval | ETA | yes | |
| Approval | ICC | yes | |
| Approval | Seismic | C1 | |
| Drill diameter | d0 | 8 | [mm] |
| Min. drill hole depth for through fixings | h2 | 65 | [mm] |
| Max. usable length hef, max. / hef, min. | tfix | 10/20 | [mm] |
| Anchor length | l | 75 | [mm] |
| Thread | Ø x Length | M 8 x 38 | [mm] |
| Width across nut | SW | 13 | [mm] |
Customers who bought this product also bought the following products:
Shipping time: 2 - 3 working days
Combination of two material components for more performance • Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting) • Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole
Shipping time: 2 - 3 working days
Shipping time: 2 - 3 working days
This Product was added to our catalogue on 10/08/2018.
Categories
Welcome back!
Last viewed:
17,90 EUR
0,18 EUR per piece
19 % VAT incl. excl. Shipping costs
