TOX All-purpose insulation wall plug Husky 8x80 mm | 50 pieces

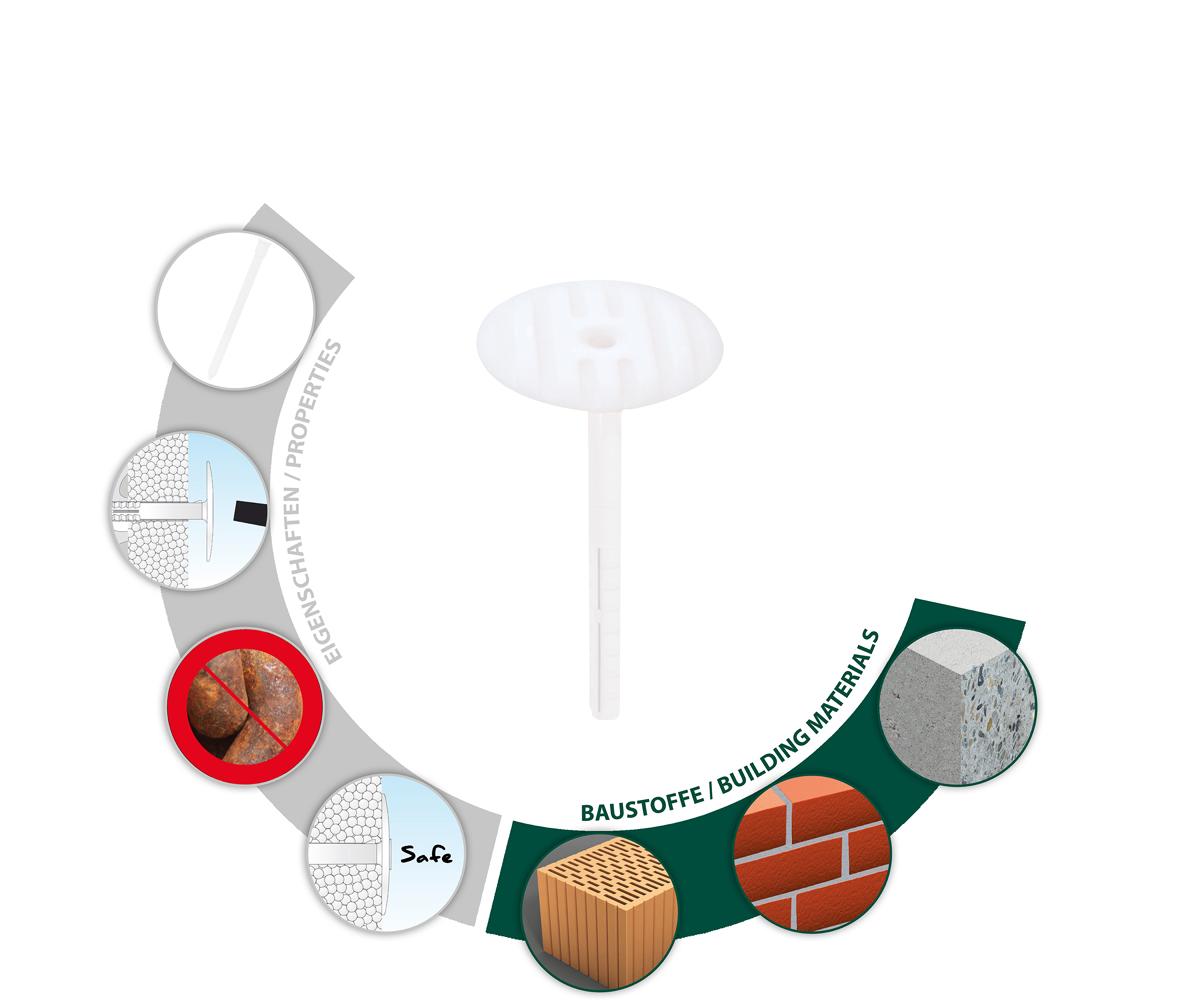

Properties

• Quick and easy thanks to impact installation
• No thermal bridges thanks to plastic nails
• Resistant to impacts of weather and rotting
• Secure hold for insulation boards

Description and field of application

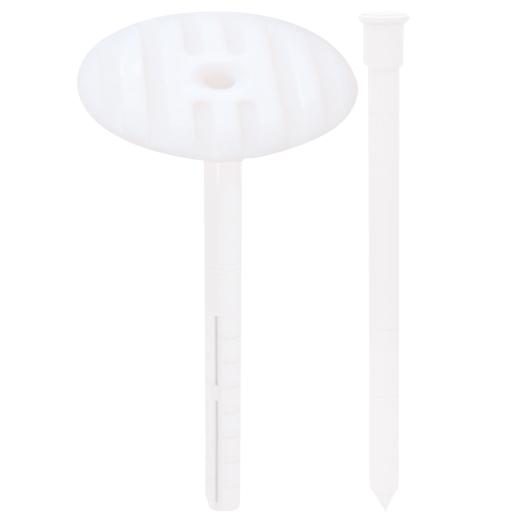

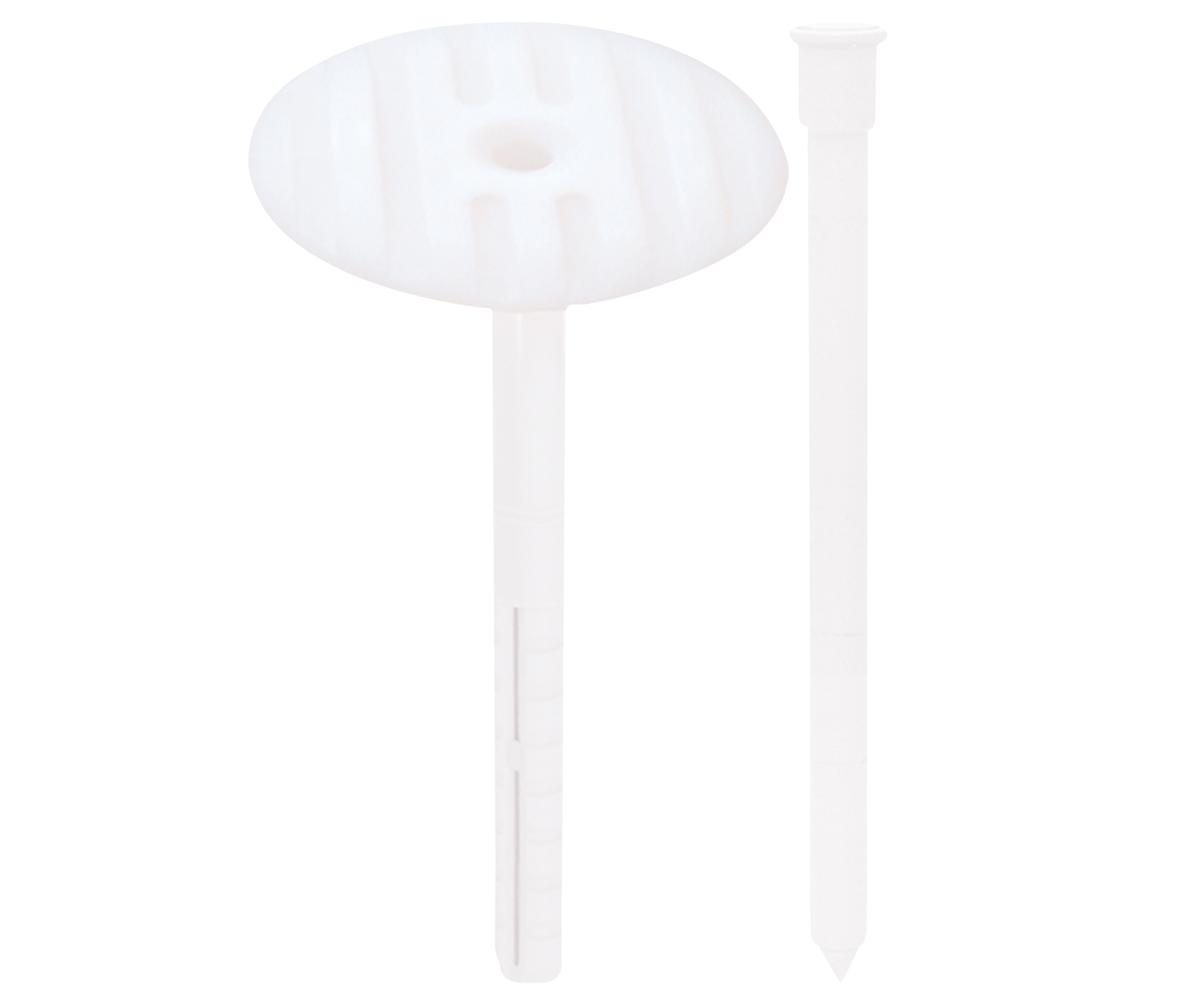

• 3-part expansion element
• Shaft with anti-rotation locks
• Plate Ø 50 mm
• Plastic nail for installation with no thermal bridges

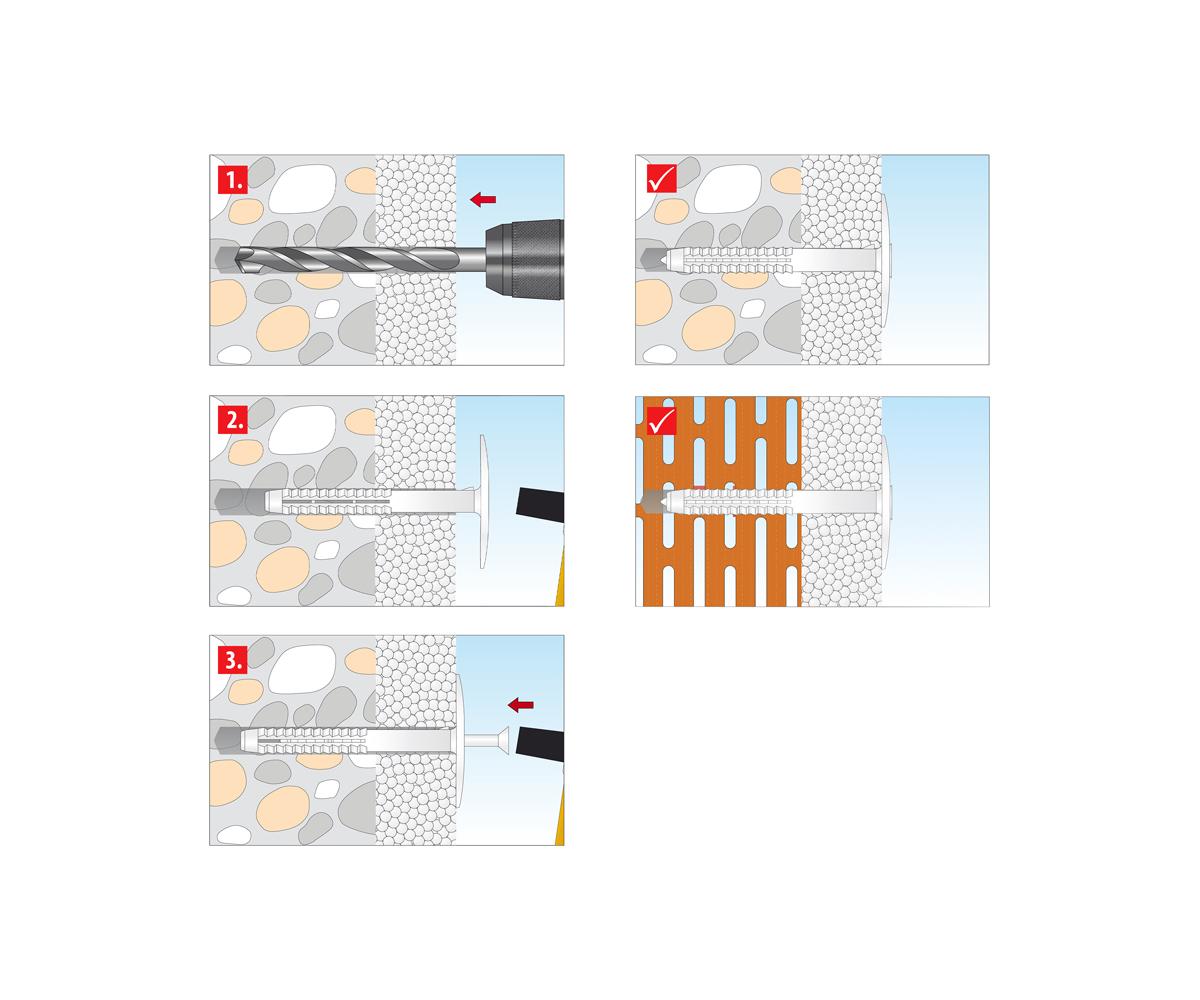

Processing and assembly

• Drill into perforated brick in a rotary motion without impact to prevent webs from breaking away
• Drill into concrete and solid brick with impactSimply knock the plastic nail into the inserted expansion element

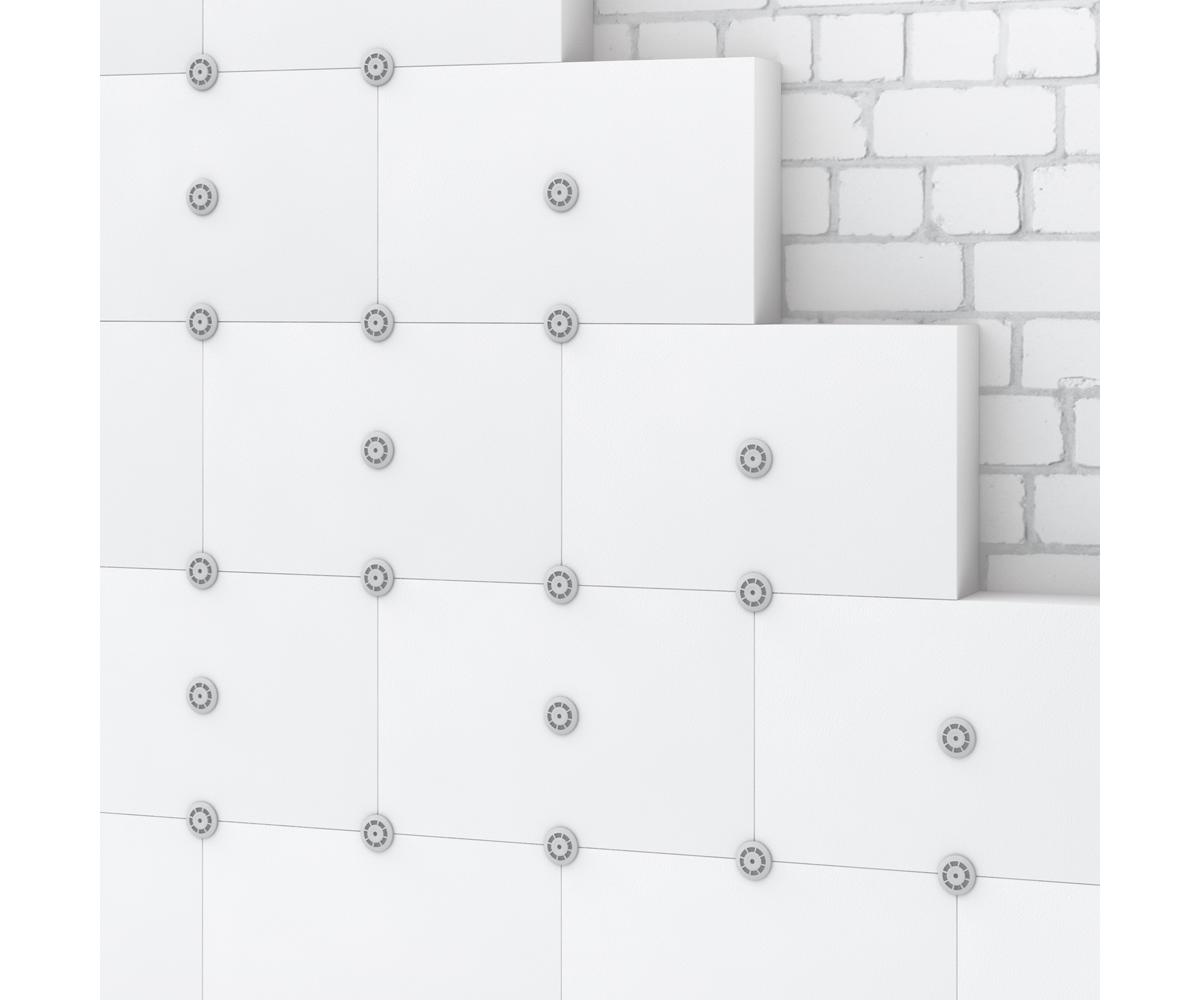

• The wall plug is used to fix insulation boards not requiring approval, either in interiors or exteriors in accordance with DIN 1102
• Where insulation boards are plastered, use 6 wall plugs per m²
• 4 fixings per m² are sufficient for non-plastered insulation boards
• Insulation boards may be fixed to concrete surfaces only if they have a total load of maximum 0.15 kN/m²
• Through installation

Technical data:
