Products description
Properties

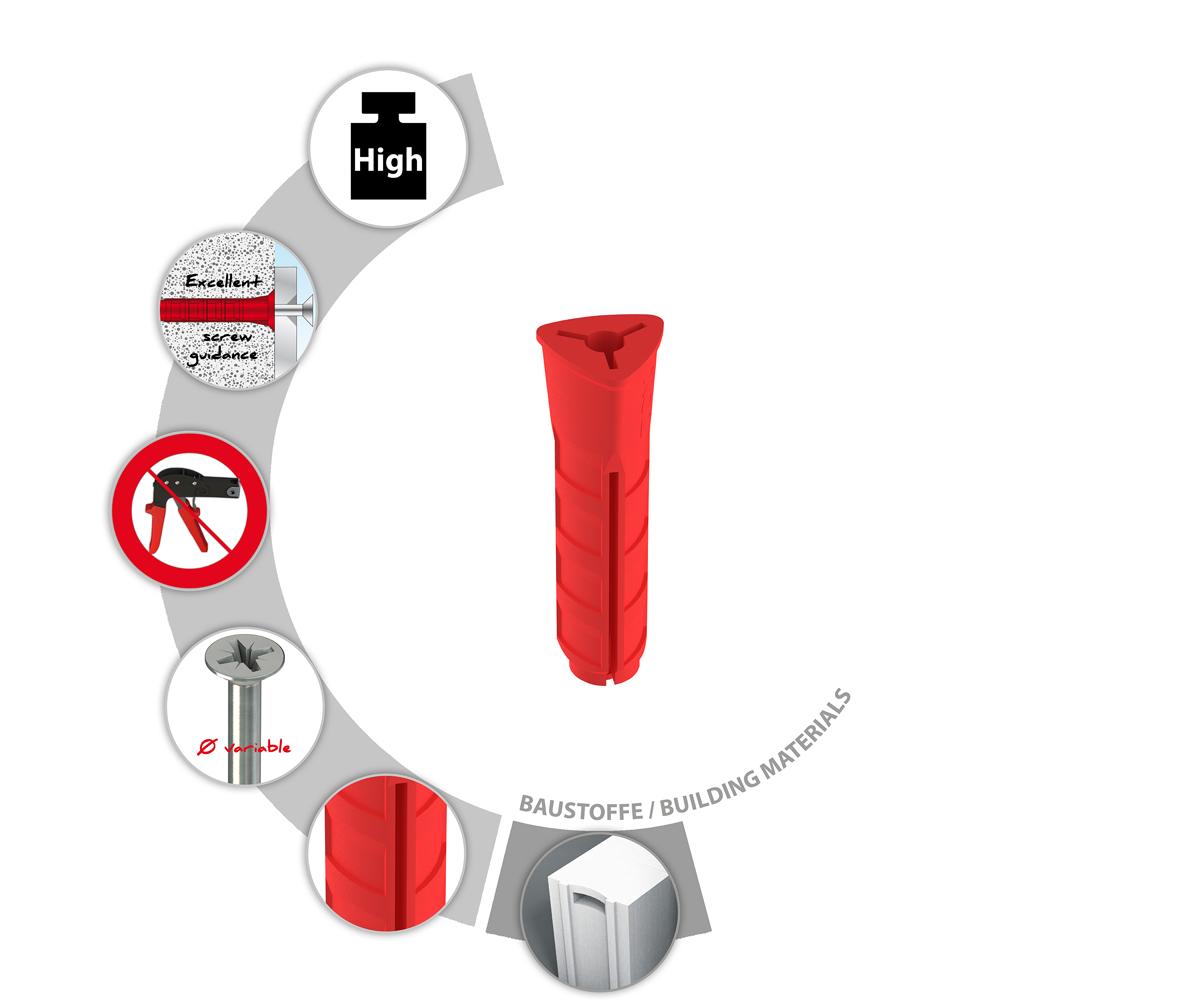

- Highest load-bearing values on the market
- No setting tools required
- Suitable for different screw diameters
- Very good anti-rotation lock thanks to special outer contour
- Excellent screw guidance

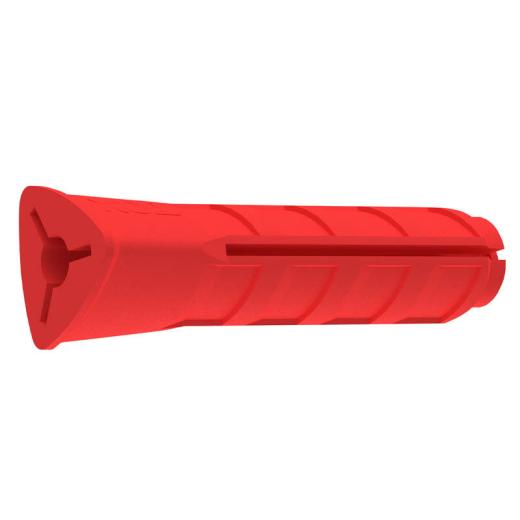

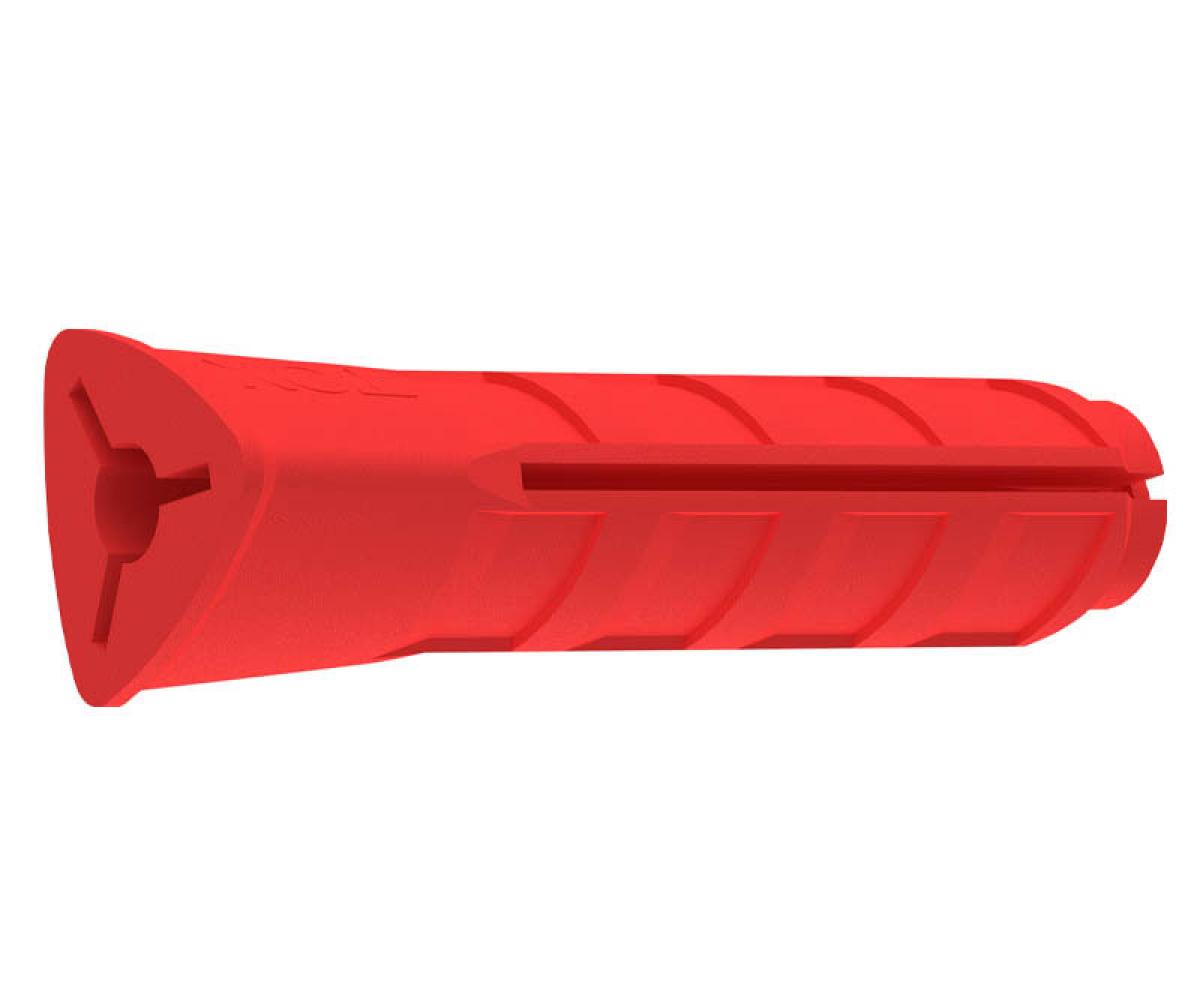

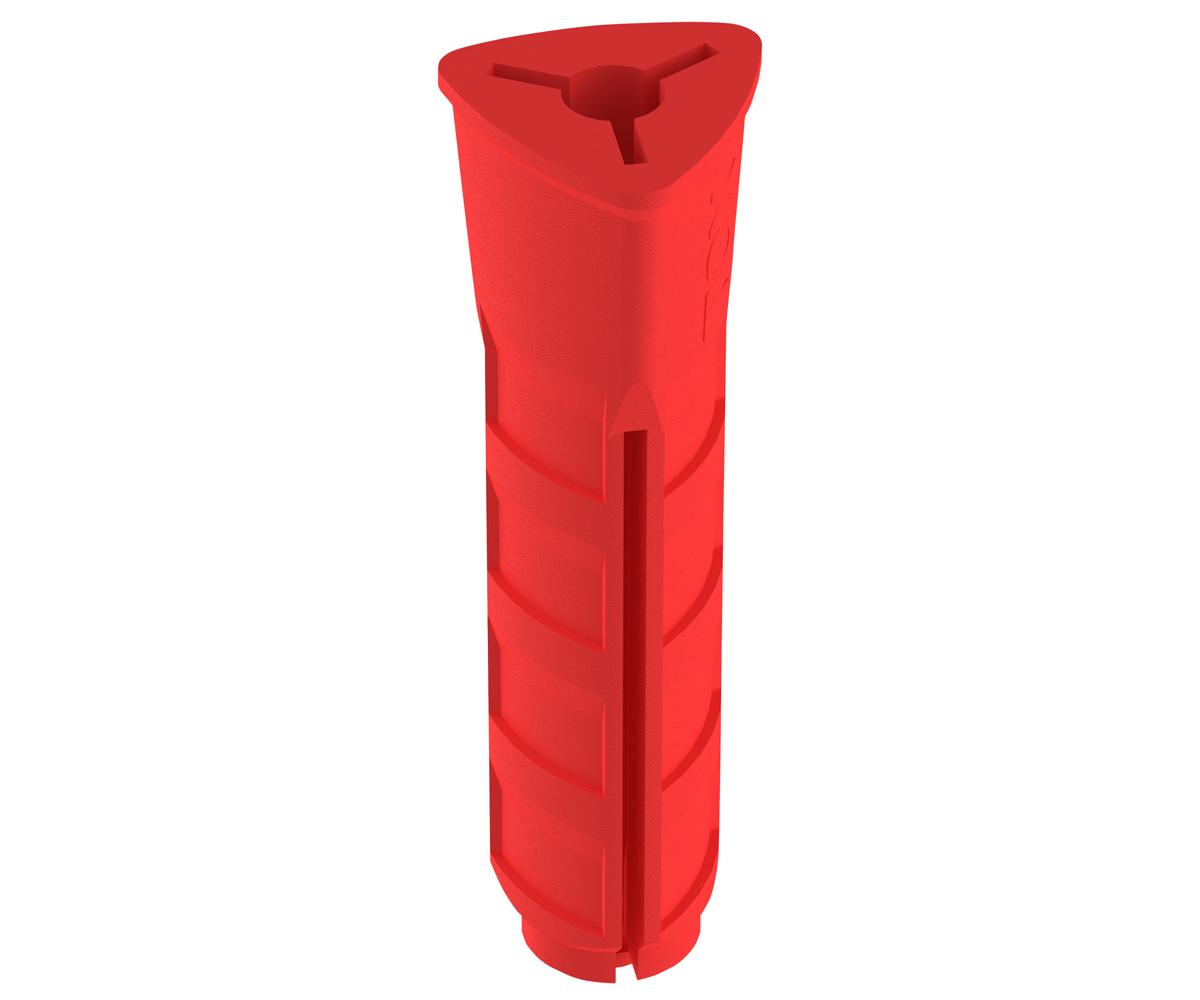

- Triangular wall plug with 3-part expansion body and countersunk head
- 3 parts for almost perfect positive anchoring

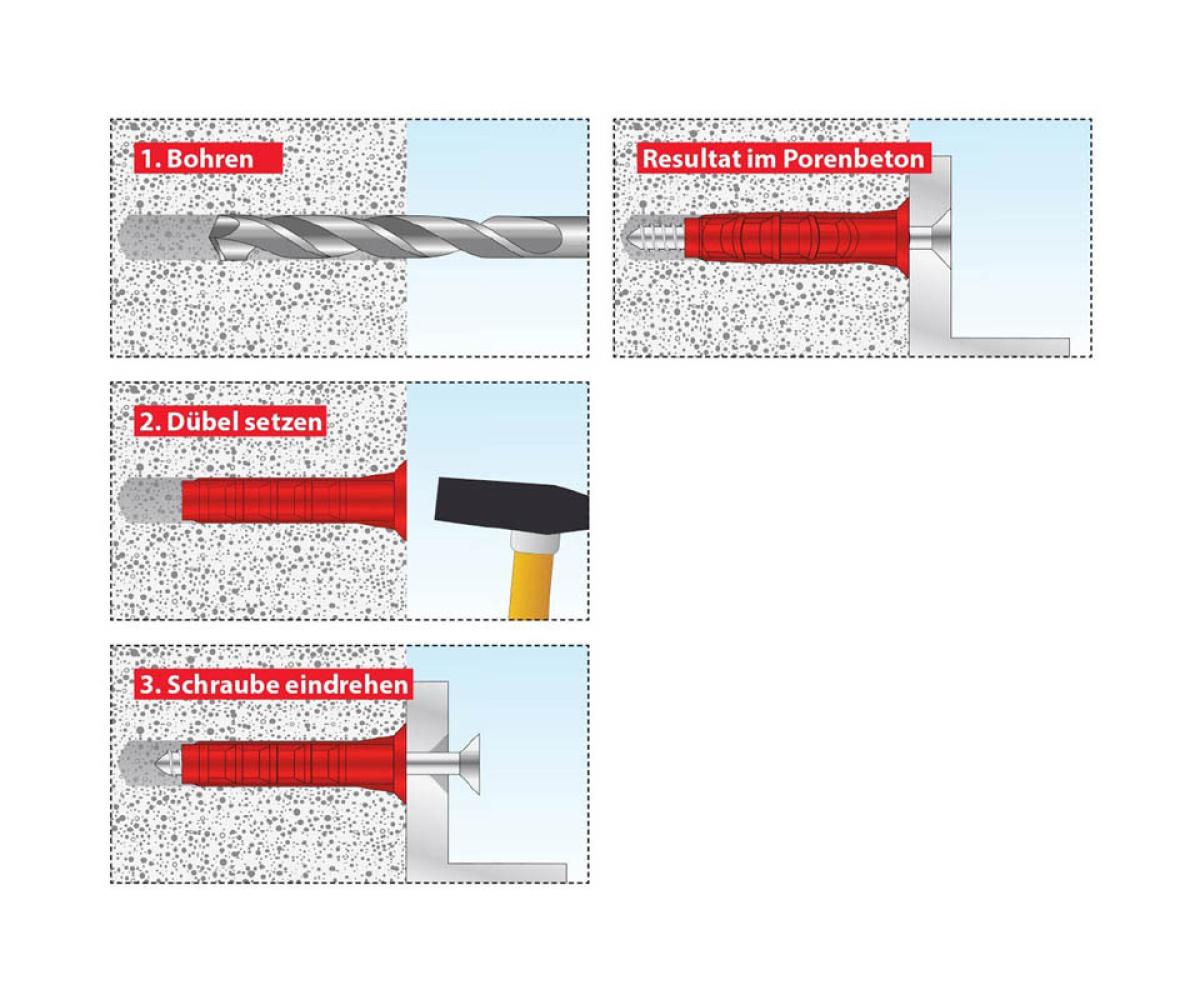

- Ytox 10/55 can easily be knocked into porous concrete PP2
- Minimum screw length = wall plug length + fixture thickness + 5 mm

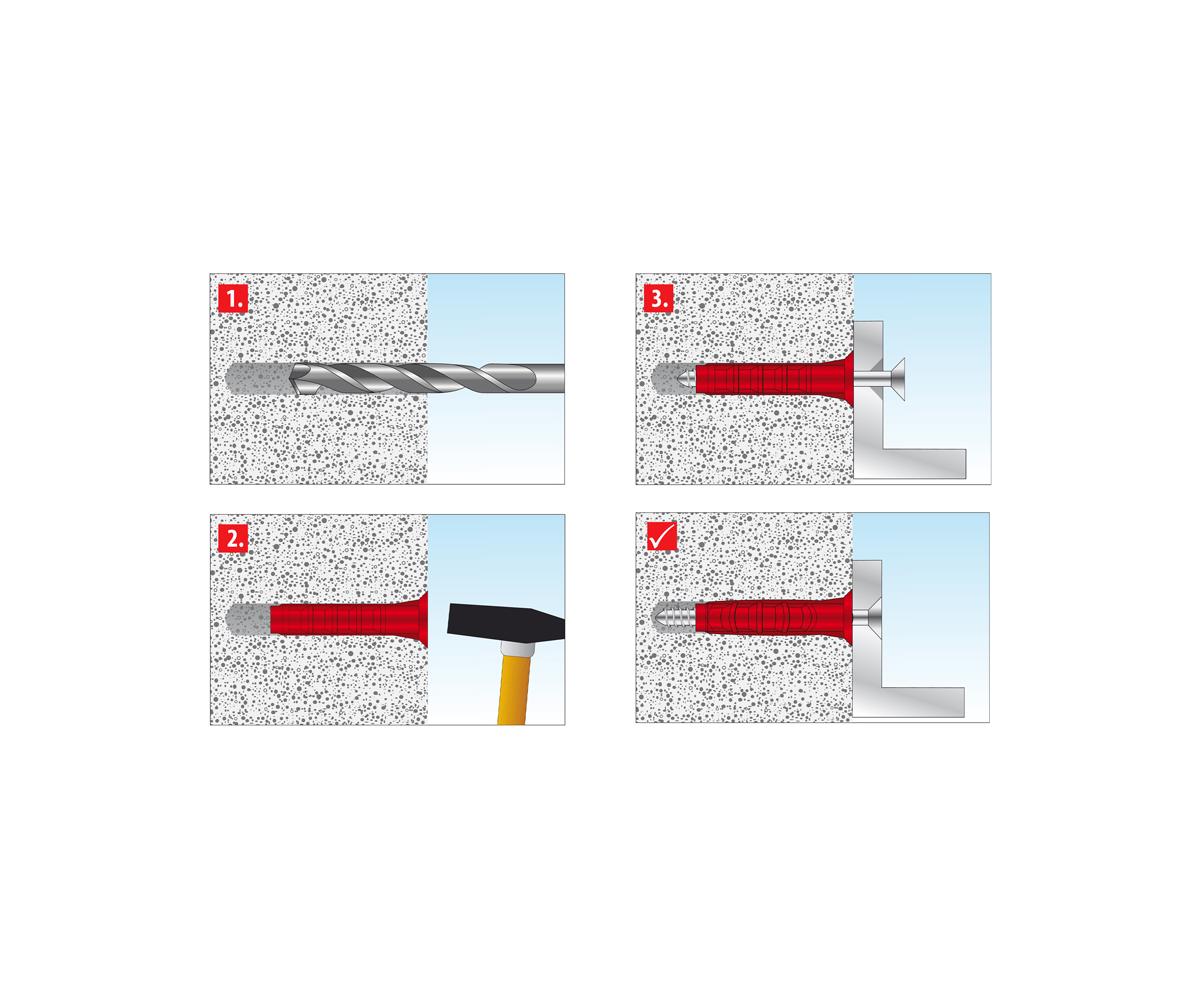

- Drill without impact
- Pre-positioned installation

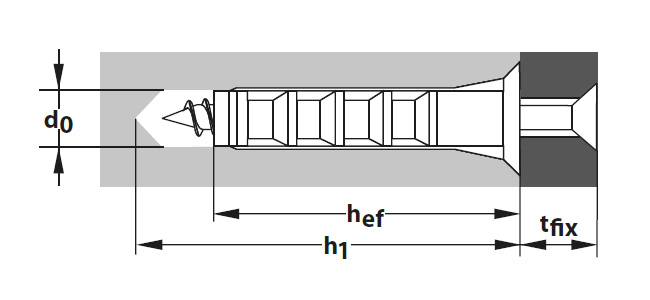

Technical data:
| Dowel diameter | 14 | [mm] | |
| Dowel length | 75 | [mm] | |
| Screw size | 10,0 | [ø mm] | |
| Screw length | ≤ 85mm + tfix | [mm] | |
| Drill hole diameter | do | 14 | [mm] |
| Min. drill hole depth | h1 | 85 | [mm] |
| Min. bolt penetration | hef | 75 | [mm] |
Customers who bought this product also bought the following products:
This Product was added to our catalogue on 11/09/2019.
Categories
Quick purchase
Welcome back!
Last viewed:
30,20 EUR
1,21 EUR per piece
19 % VAT incl. excl. Shipping costs
Features:All-purpose frame wall plug
