fischer Stand-off installation TherMax 10/220 M10 - 20 pieces

fischer Stand-off installation TherMax 10/220 M10 - 20 pieces

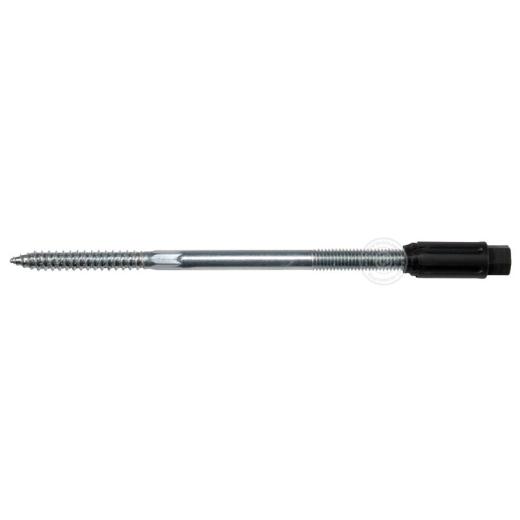

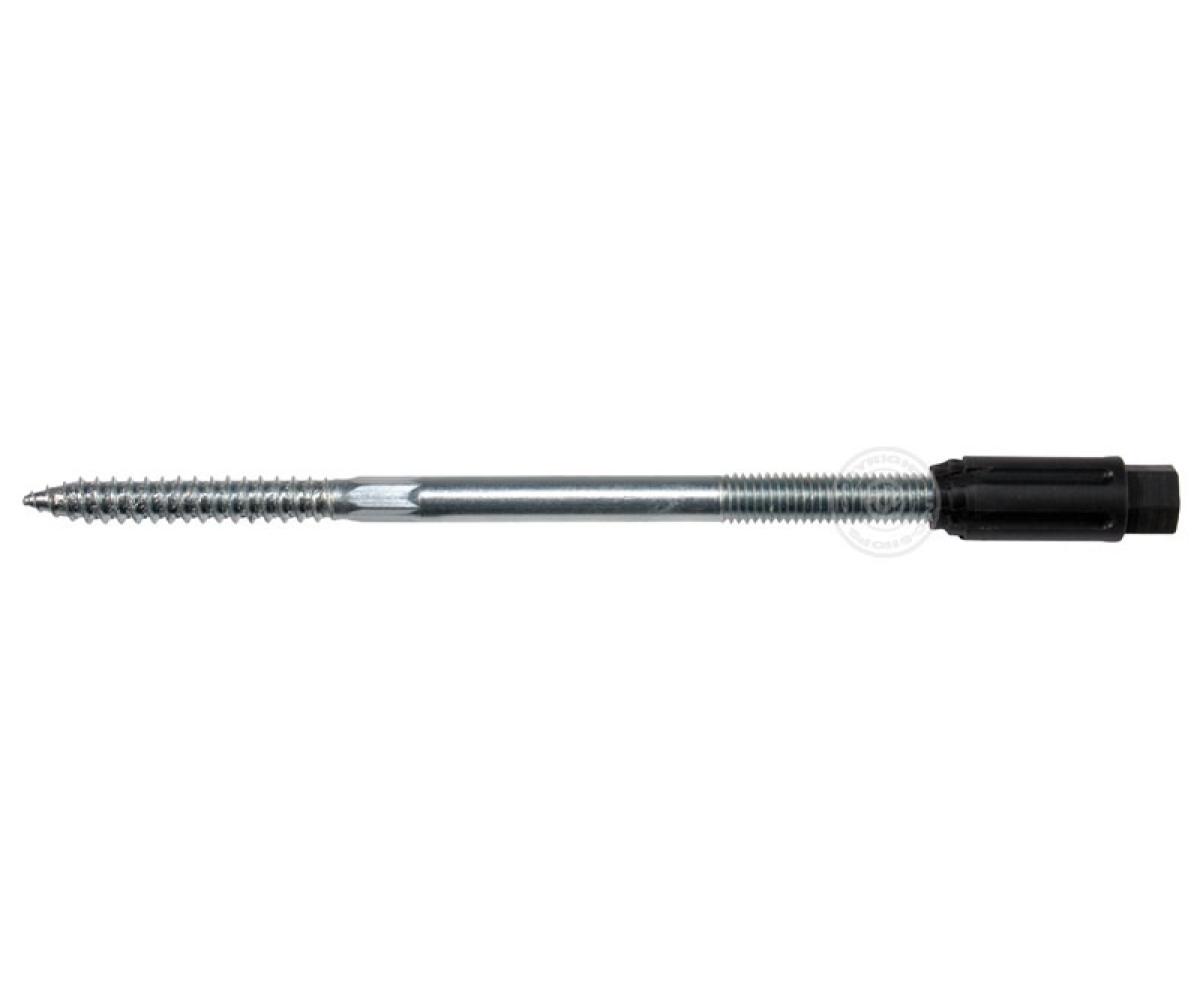

For a larger view click on the thumbnail
fischer Stand-off installation TherMax 10/220 M10 - 20 pieces
144,90 EUR
7,25 EUR per piece
19 % VAT incl. excl. Shipping costs
Add to cart
Shipping time: 2 - 3 working days
Product no.: F514258
MPN: 514258
Weight: 2.5170 KG


Products description

fischer Stand-off installation TherMax 10/220 M10

Applications
For the thermally separated fixing of:

  • Signs, Lighting, Letter boxes, Motion detectors, Downpipes, Lightning rods, Blind guide rails


Building materials

  • Concrete, Vertically perforated brick, Hollow blocks made from lightweight concrete, Perforated sand-lime brick, Solid sand-lime brick, Building brick, Aerated concrete, Wood


Technical data

Min. screw length ls 22mm + thickness of mounting member tfix; for use in wood without universal plug UX, consider drill hole diameter in footnote under load table.

 Drill hole diameter d0 12 [mm]
 Drill hole depth h0 280 [mm]
 Max. thickness of non-bearing layer 200 - 220 [mm]
 Anchorage depth hef 70 [mm]
 Cover cap-Ø ADK 22 [mm]
 Width across nut SW 13 [mm]
 Chipboard / metric / sheet metal screw M10
