Products description

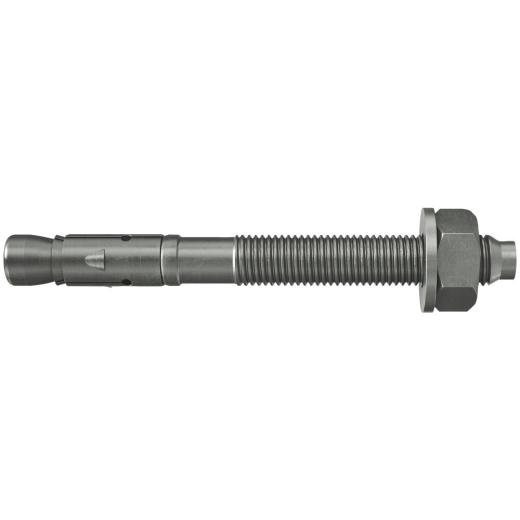

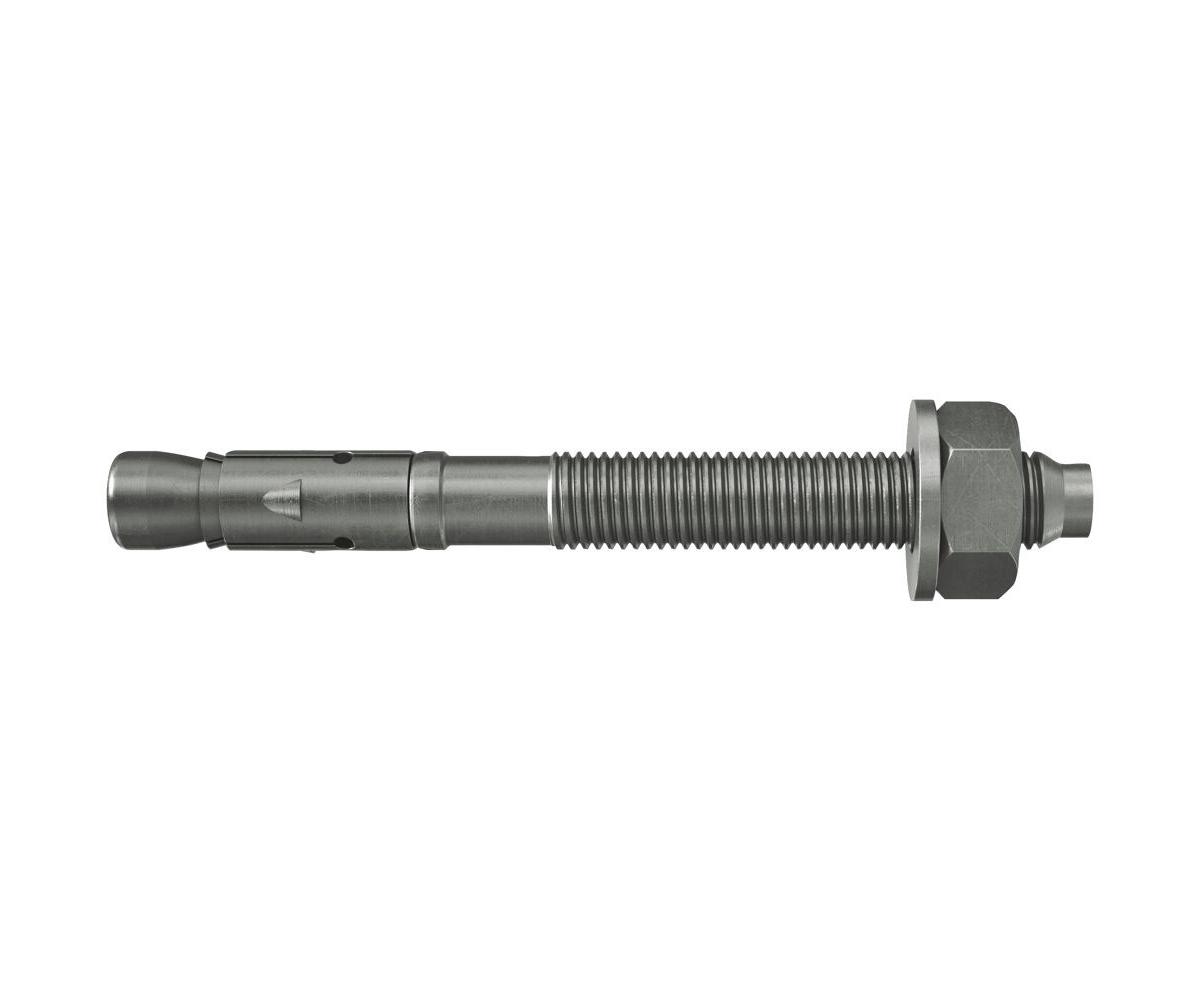

fischer Bolt anchor FAZ II Plus 12/160 R
Execution
- stainless steel
Applications

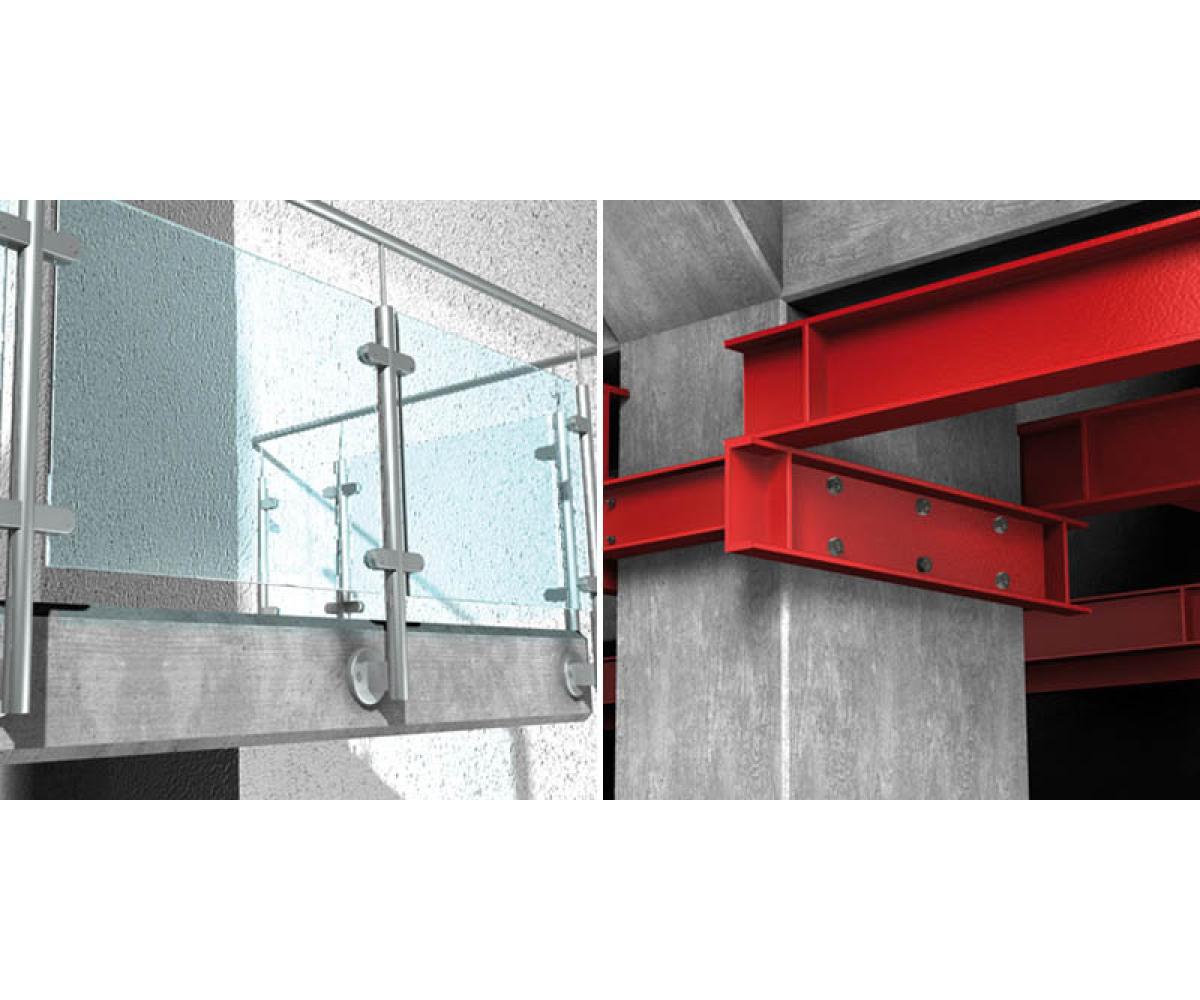

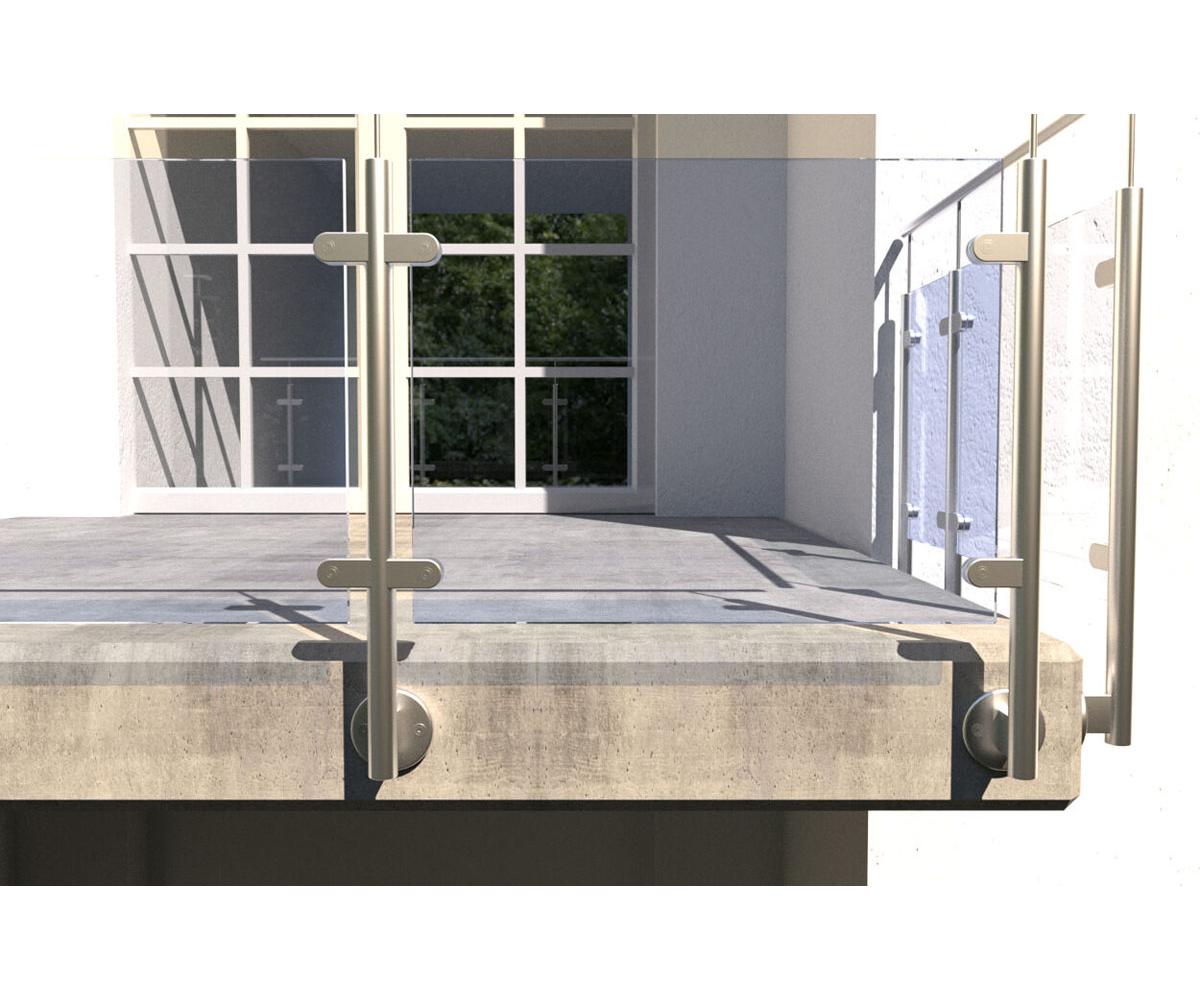

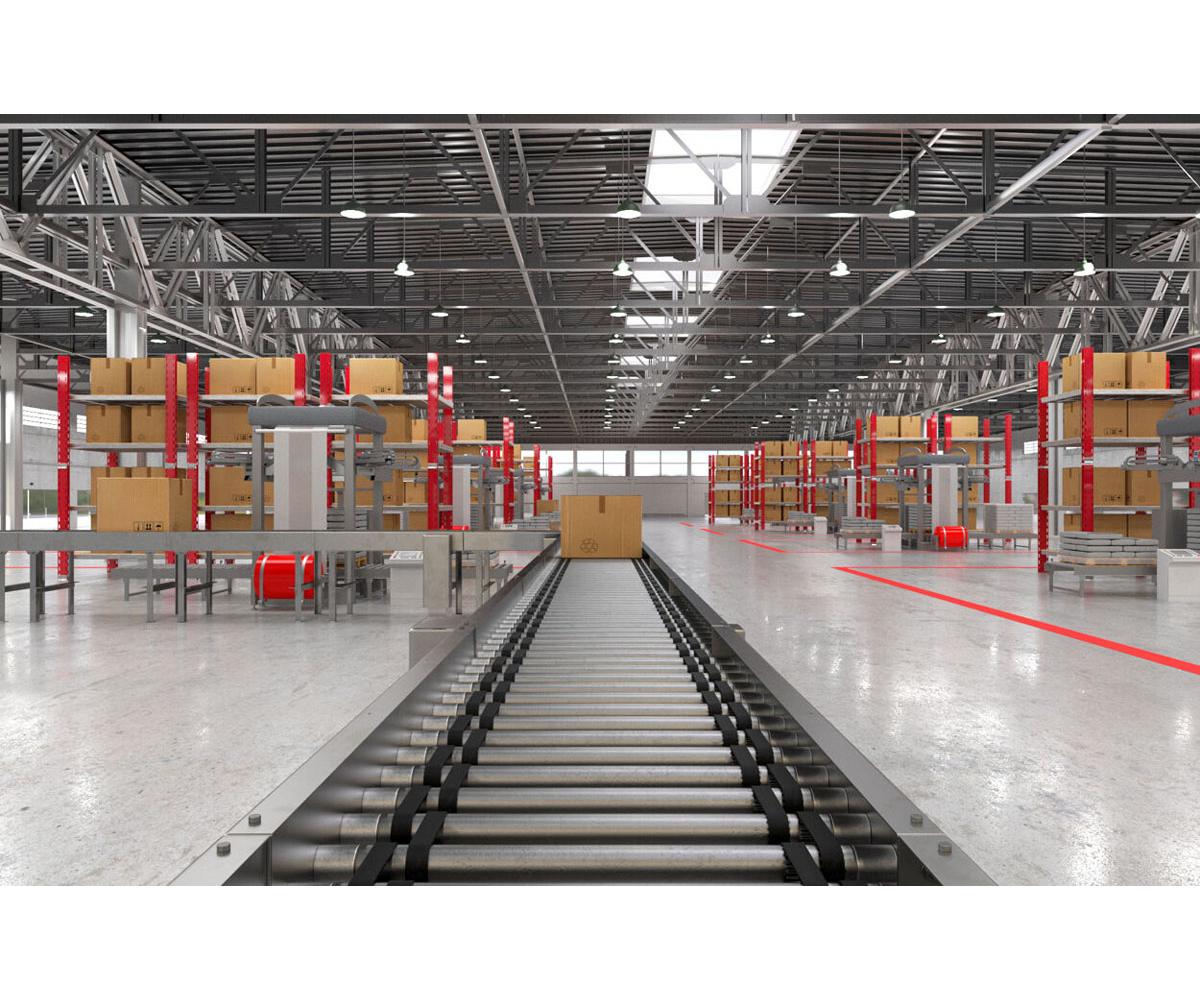

- Steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, façades, timber constructions
Building materials
Approved for:
- Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
- Concrete C12/15, Concrete C80/95 (classification available), Steel fiber concrete (classification available), Solid sand-lime brick (classification available)
Approval
- ETA-19/0520, DoP No. 0334, Z-21.1-2152, ESR-2948
Technical data
| Approval | ETA | yes | |
| Approval | ICC | yes | |
| Approval | Seismic | C1/C2 | |
| Drill diameter | d0 | 12 | [mm] |
| Min. drill hole depth for through fixings | h2 | 249 | [mm] |
| Max. usable length hef, max. / hef, min. | tfix | 160/180 | [mm] |
| Anchor length | l | 260 | [mm] |
| Thread | Ø x Length | M 12 x 186 | [mm] |
| Width across nut | SW | 19 | [mm] |
This Product was added to our catalogue on 08/04/2021.
