Bolt anchor FAZ II Plus 16/5 R - 20 pieces

Bolt anchor FAZ II Plus 16/5 R - 20 pieces
For a larger view click on the thumbnail
Bolt anchor FAZ II Plus 16/5 R - 20 pieces
Bolt anchor FAZ II Plus 16/5 R - 20 pieces
Bolt anchor FAZ II Plus 16/5 R - 20 pieces
193,90 EUR
9,70 EUR per piece
19 % VAT incl. excl. Shipping costs
Add to cart
Shipping time: 2 - 3 working days
Product no.: F564626
MPN: 564626
More products of: fischer
Weight: 4.1530 KG


Products description

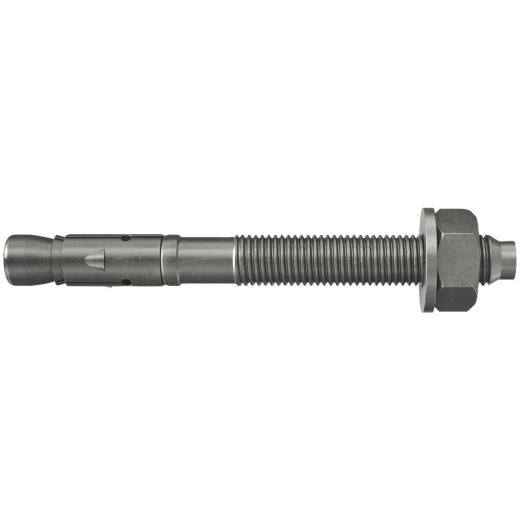

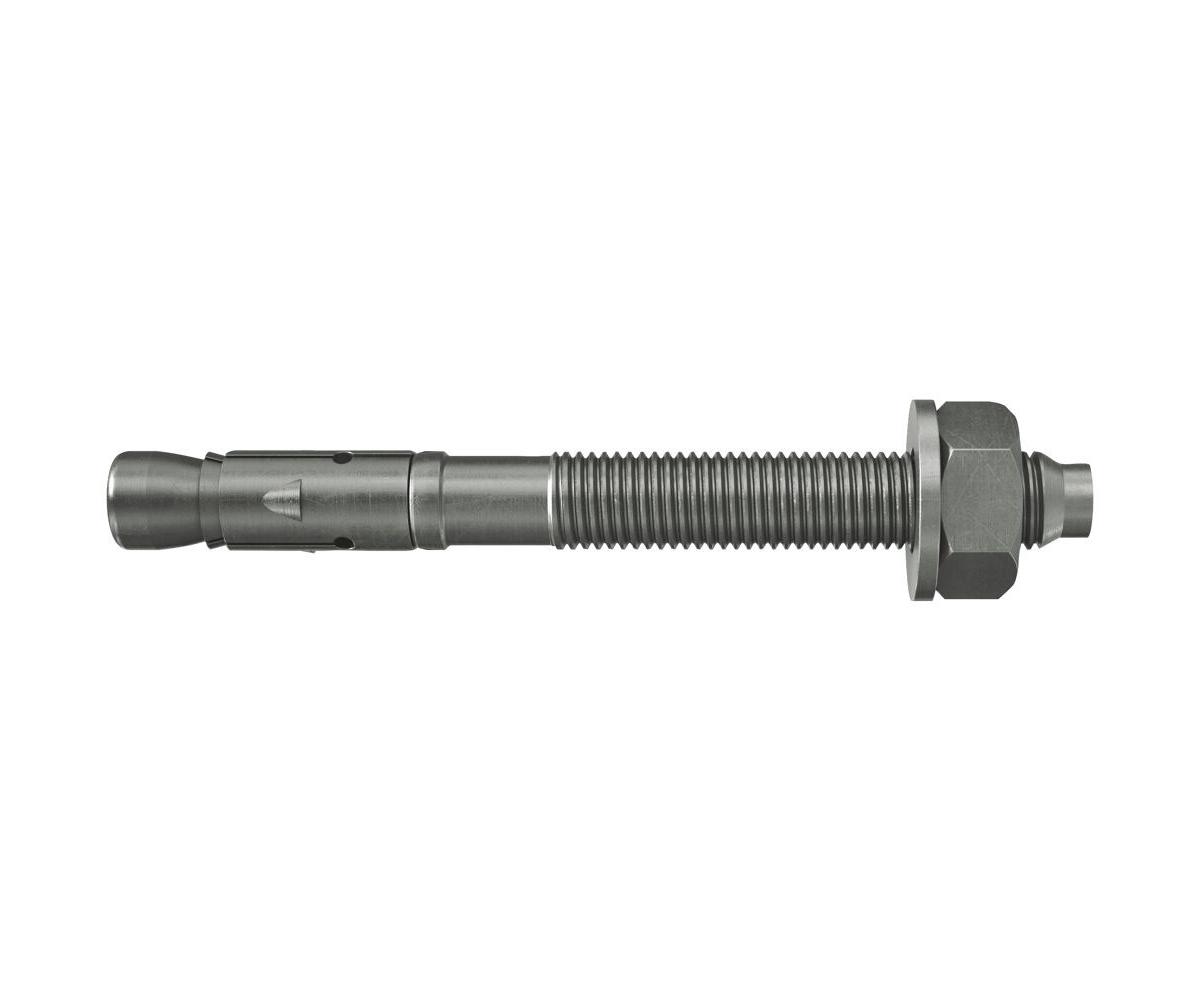

fischer Bolt anchor FAZ II Plus 16/5 R

Execution

  • stainless steel


Applications

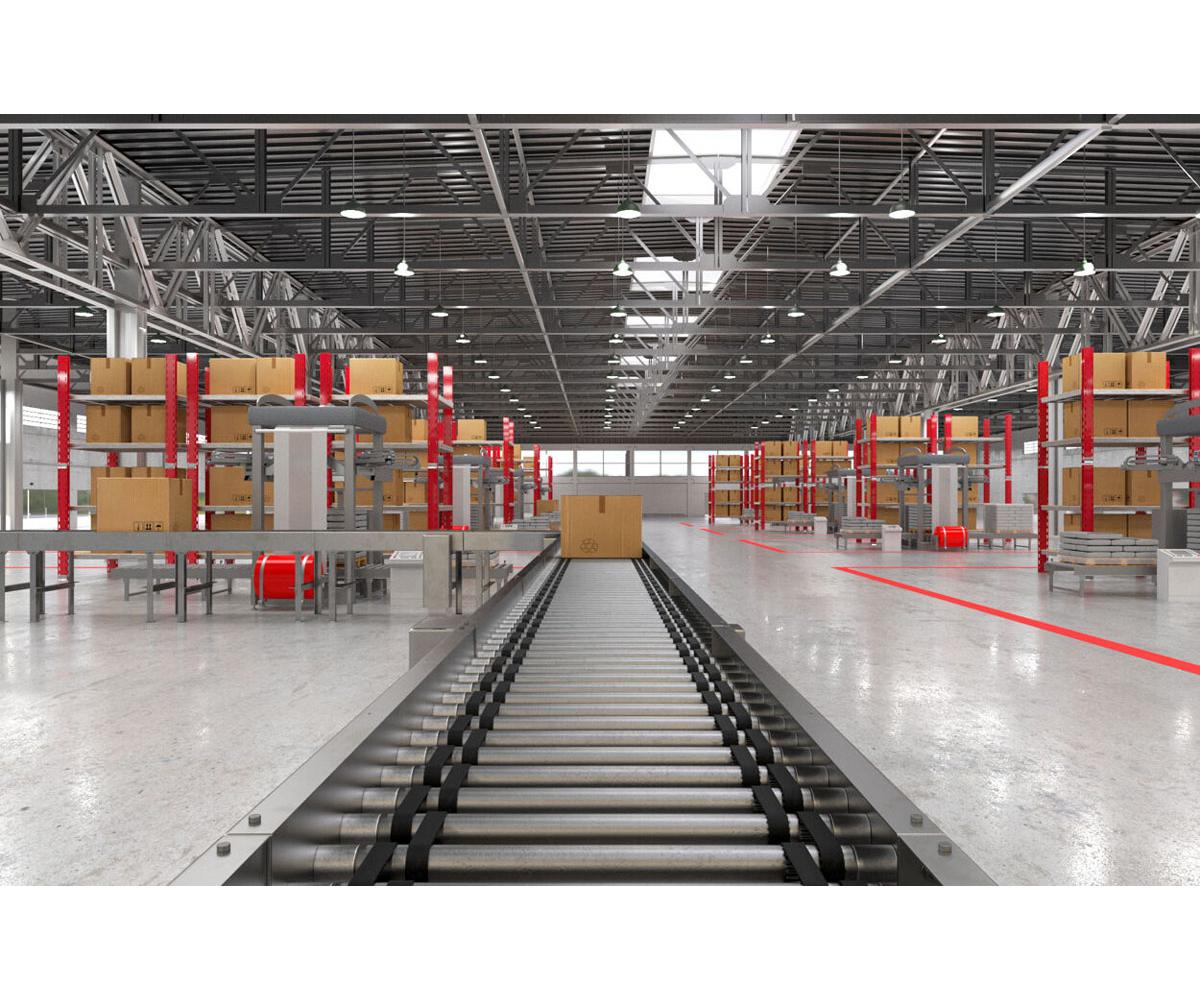

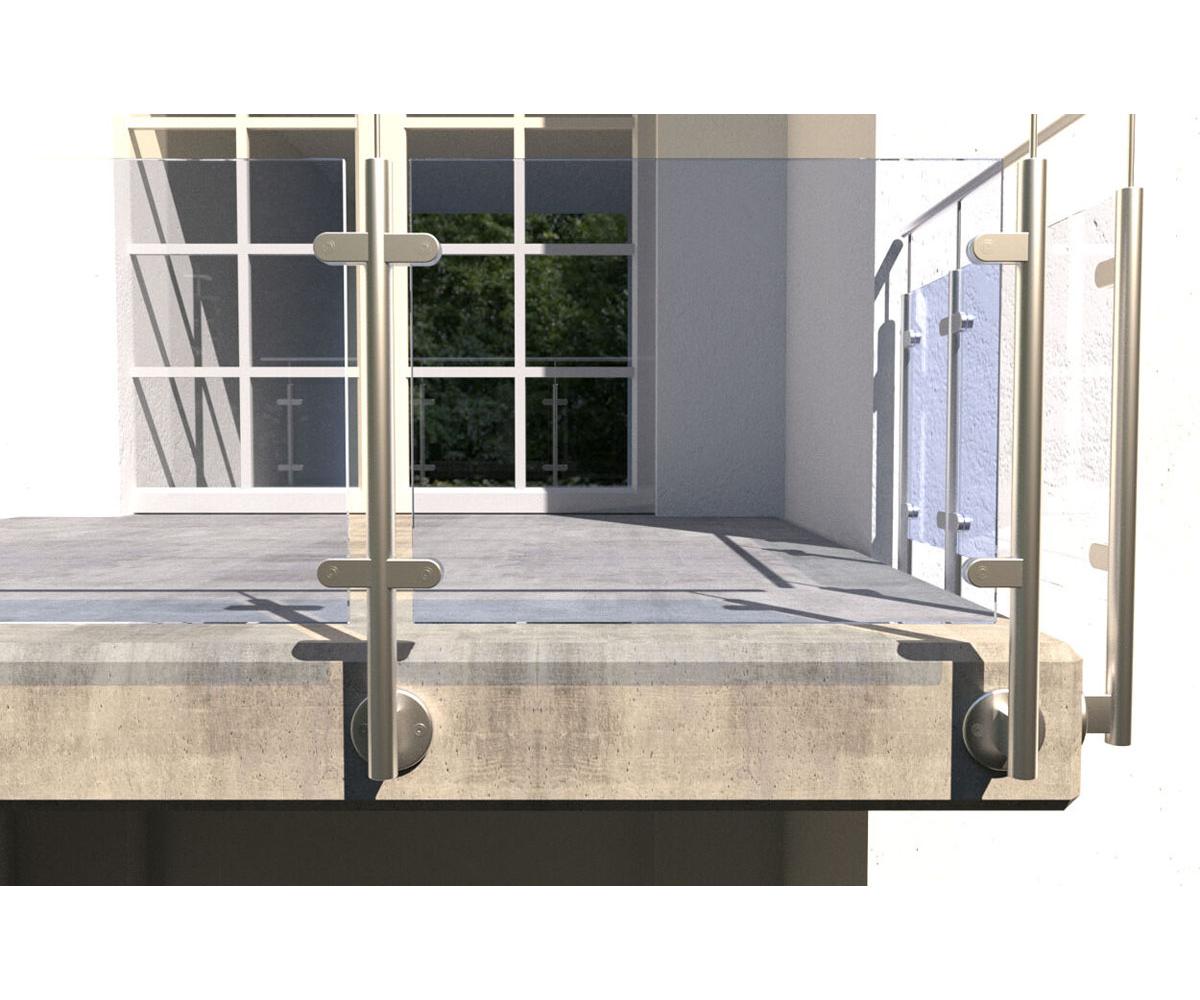

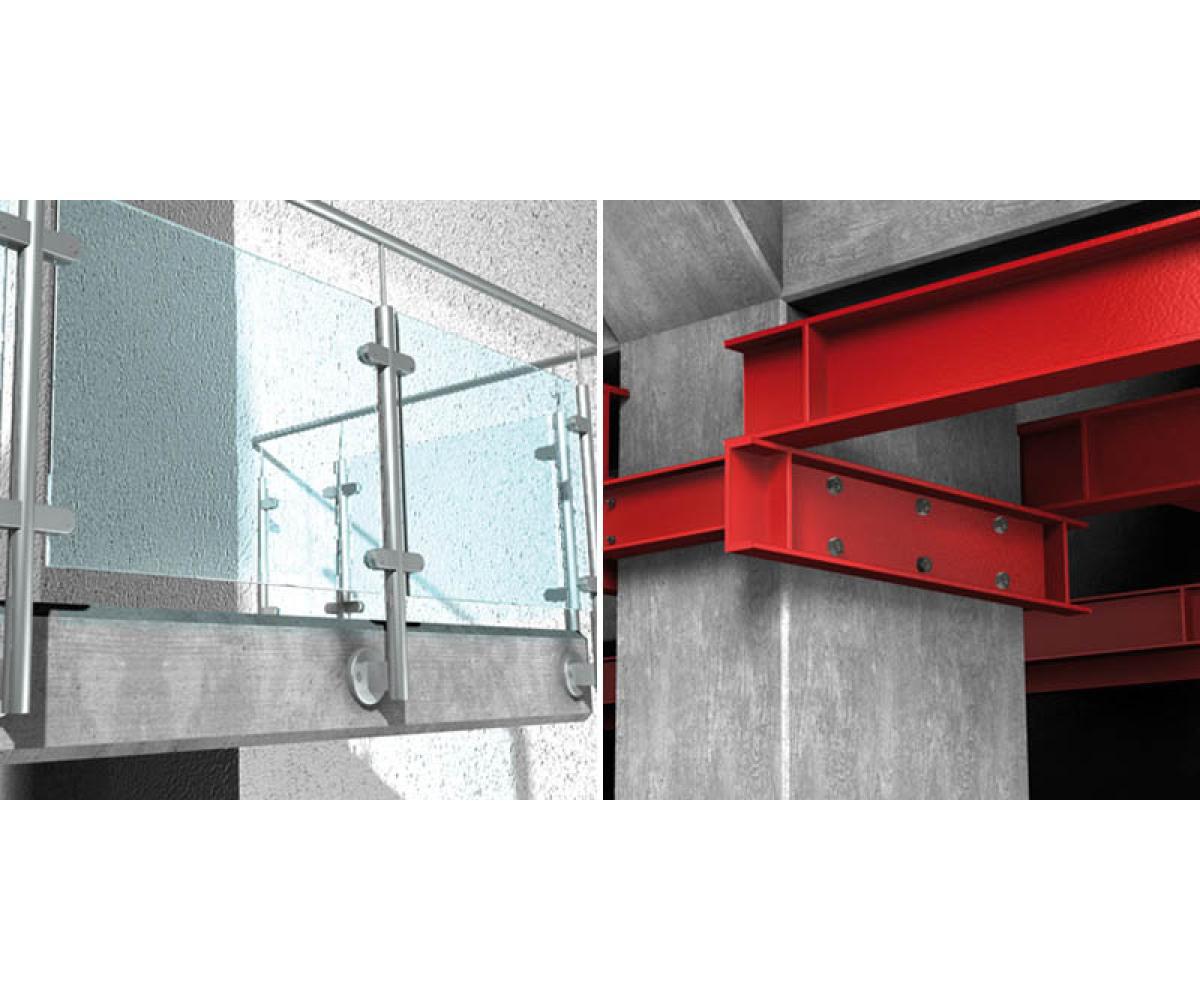

  • Steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, façades, timber constructions


Building materials
Approved for:

  • Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

  • Concrete C12/15, Concrete C80/95 (classification available), Steel fiber concrete (classification available), Solid sand-lime brick (classification available)


Approval

  • ETA-19/0520, DoP No. 0334, Z-21.1-2152, ESR-2948


Technical data

ApprovalETAyes
ApprovalICCyes
ApprovalSeismicC1/C2
Drill diameterd016[mm]
Min. drill hole depth for through fixingsh2113[mm]
Max. usable length hef, max. / hef, min.tfix5/25[mm]
Anchor lengthl128[mm]
ThreadØ x LengthM 16 x 64[mm]
Width across nutSW24[mm]

This Product was added to our catalogue on 22/07/2023.
