Products description

fischer Expansion plug SX Plus

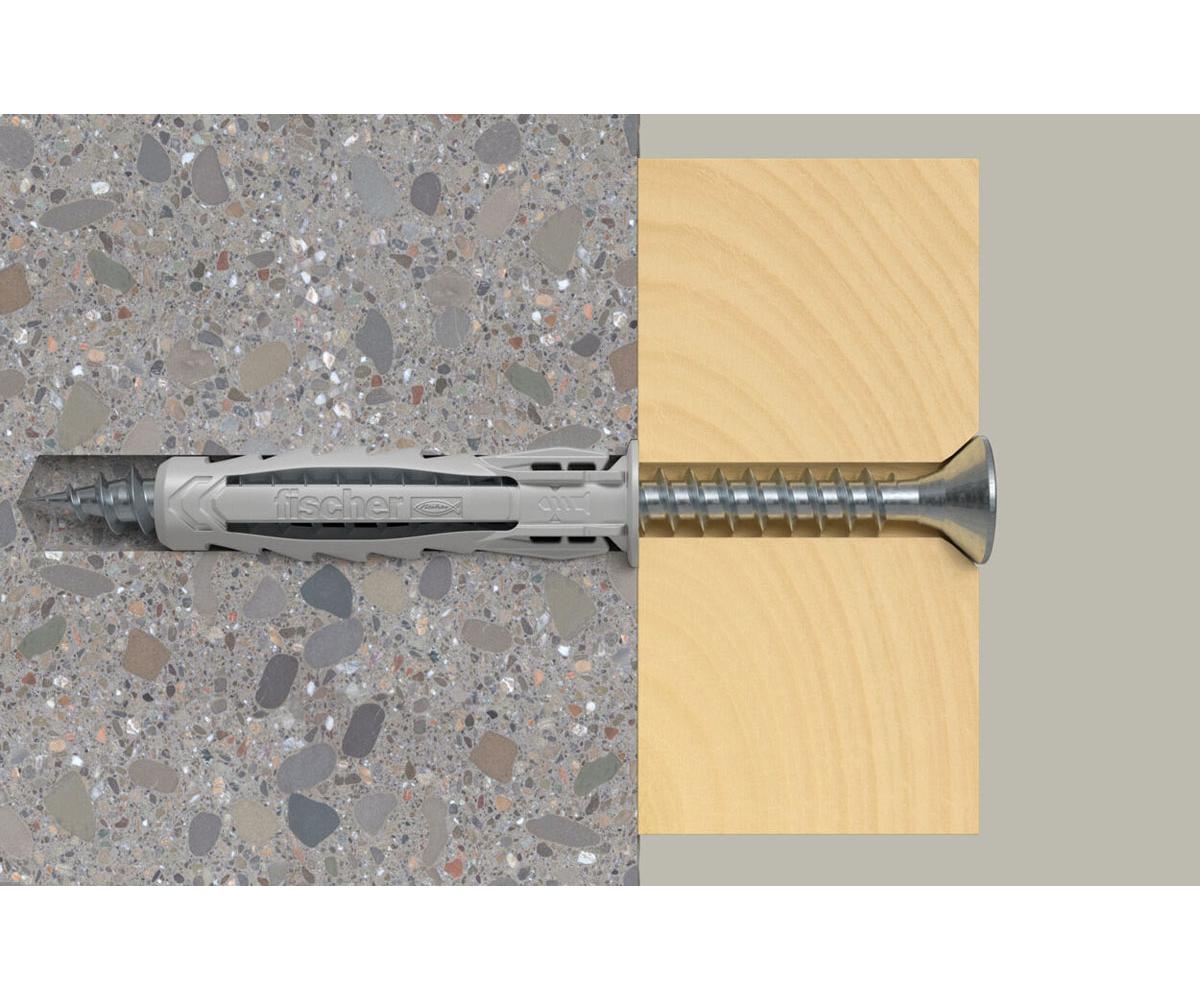

The special fixing wings of the SX Plus fix the screw in place by simply inserting it. As soon as the plug is inserted, the fixing wings are pressed inwards, causing the screw to lock and be held in place. Depending on the building material, the inserted screw also fixes light attachment parts which leaves both of the user's hands free. This is particularly helpful for overhead applications.

Applications

  • The SX Plus is suitable for pre-positioned and push-through installation.
  • When the plug is inserted, the fixing wings fold inwards. This locks the screw in place when it is inserted into the plug and prevents it from falling out, which is particularly helpful in overhead applications.
  • The anti-rotation lock prevents the plug from twisting and allows for easy installation.
  • The special design of the SX Plus anchor ensures a high tightening torque, therefore prevents overtightening of the screw.
  • Suitable for wood and chipboard screws, as well as stud screws.
  • The required screw length is given by


Building materials

  • Concrete, Vertically perforated brick, Hollow blocks made from lightweight concrete, Cavity floor slabs made from bricks and concrete, Perforated sand-lime brick, Solid sand-lime brick, Natural stone with dense structure, Aerated concrete, Solid panel made from gypsum, Solid brick made from lightweight concrete, Solid brick


Technical data




Item

Drill diameter
d0

Min. drill hole depth
h1
Anchor length
l
Wood and chipboard screws
ds / ds x ls
Max. fixture thickness
tfix
SX Plus 4 x 20425202,0 - 3,0-
SX Plus 5 x 25535253,0 - 4,0-
SX Plus 6 x 30640304,0 - 5,0-
SX Plus 6 x 30 S645304,5 x 405
SX Plus 6 x 30 S PH TX645304,5 x 40 5
SX Plus 6 x 50660504,0 - 5,0-
SX Plus 8 x 40850404,5 - 6,0-
SX Plus 8 x 40 S865405,0 x 6015
SX Plus 8 x 65875654,5 - 6,0-
SX Plus 10 x 501070506,0 - 8,0-
SX Plus 10 x 8010100806,0 - 8,0-
SX Plus 12 x 601280608,0 - 10,0-
SX Plus 14 x 7014907010,0 - 12,0-
