Products description
fischer Adjustable fixing S 10 J 75 S
Applications
- Substructures made of wooden battens of 20-25 mm thickness
Building materials
- Concrete, Wood, Solid sand-lime brick, Natural stone with dense structure, Aerated concrete, Solid panel made from gypsum, Solid brick made from lightweight concrete, Solid brick

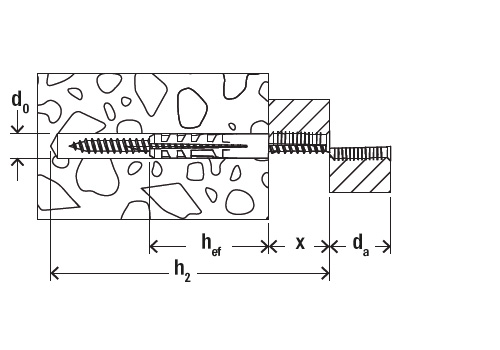

Technical data
| Drill hole diameter | d0 | 10 | [mm] |
| Min. drill hole depth for through fixings | h2 | 115 | [mm] |
| Effect. anchorage depth | hef | 50 | [mm] |
| Screw length | ls | 110 | [mm] |
| Max. timber thickness | da | 25 | [mm] |
| Max. adjustment travel | x | 30 | [mm] |
This Product was added to our catalogue on 17/01/2017.
