fischer Bolt anchor FAZ II Plus 12/10 - 20 pieces

fischer Bolt anchor FAZ II Plus 12/10 - 20 pieces
For a larger view click on the thumbnail
fischer Bolt anchor FAZ II Plus 12/10 - 20 pieces
41,90 EUR
2,10 EUR per piece
19 % VAT incl. excl. Shipping costs
Add to cart
Shipping time: 2 - 3 working days
Product no.: F564586
MPN: 564586
Weight: 2.0640 KG


Products description

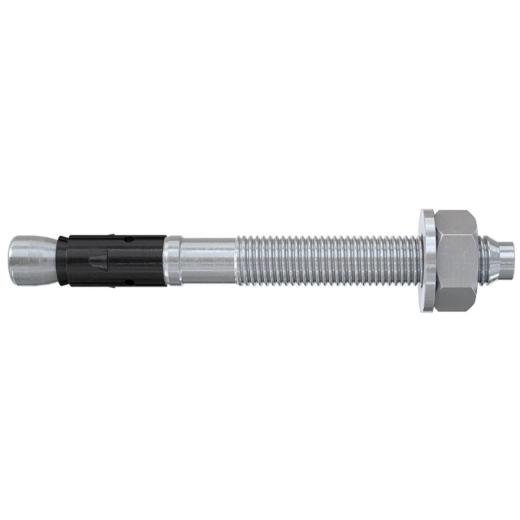

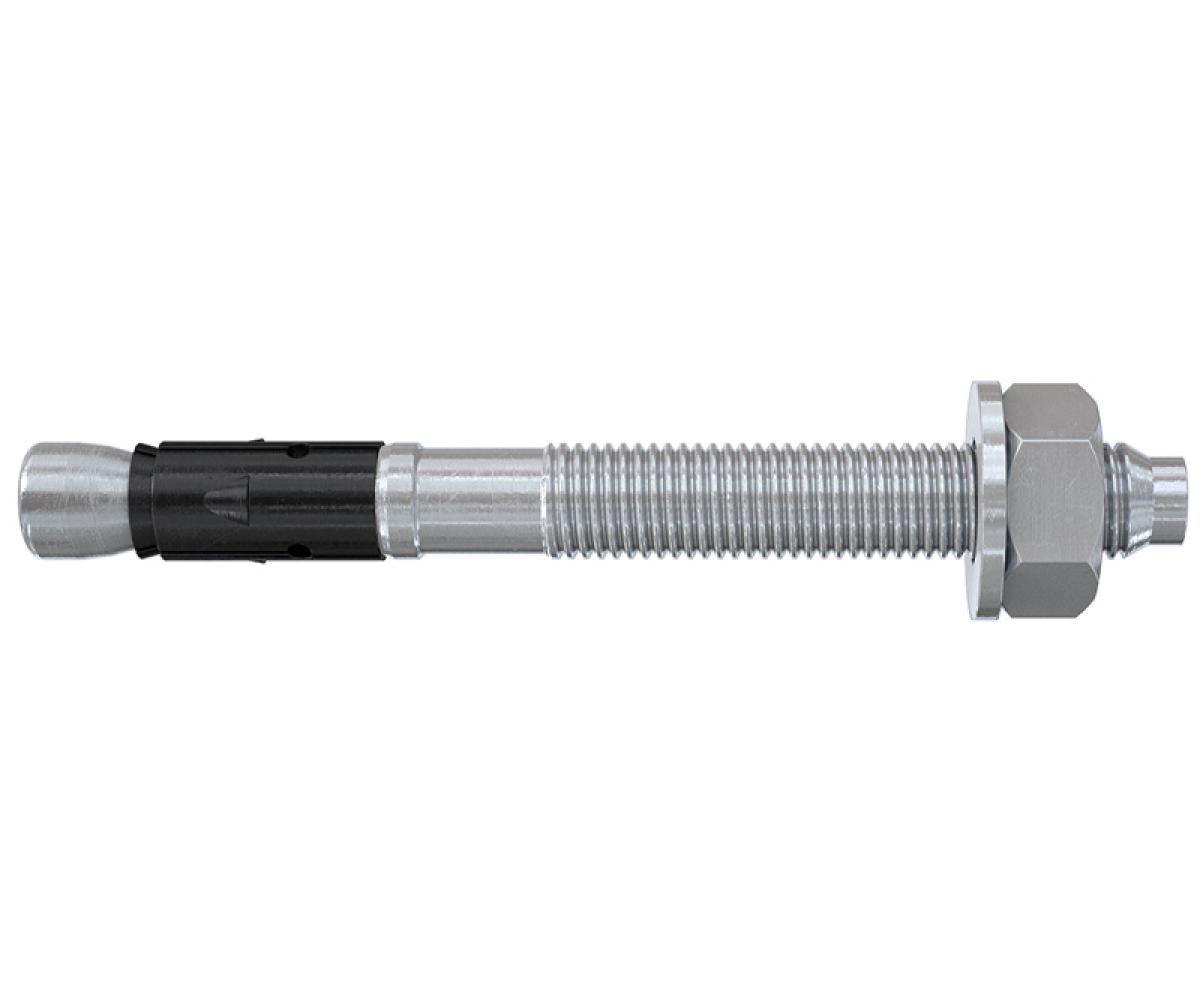

fischer Bolt anchor FAZ II Plus 12/10

Execution

  • Electrolytically galvanized steel


Applications

  • Steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, façades, timber constructions


Building materials
Approved for:

  • Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

  • Concrete C12/15, Concrete C80/95 (classification available), Steel fiber concrete (classification available), Solid sand-lime brick (classification available)


Approval

  • ETA-19/0520, DoP No. 0334, Z-21.1-2152, ESR-2948


Technical data

ApprovalETAyes
ApprovalICCyes
ApprovalSeismicC1/C2
Drill diameterd012[mm]
Min. drill hole depth for through fixingsh2100[mm]
Max. usable length hef, max. / hef, min.tfix10/30[mm]
Anchor lengthl110[mm]
ThreadØ x LengthM 12 x 61[mm]
Width across nutSW19[mm]
